Other actuators and accessories

Regulated Motion Control Made Easy Enidine Rate Controls are used to regulate the speed or time required for a mechanism to move from one position to another. They use proven technology to enhance performance in a variety of product ...

Power: 0 kW - 15 kW
Torque: 0 Nm - 778 Nm
Rotational speed: 0 rpm - 870 rpm

Tecnotions’ smallest and medium range torque motors offer a range of options. The QTR torque motor series are available with different winding types, flying leads, and an optional digital hall sensor.

Torque: 907, 659 Nm
Rotational speed: 138, 96 rpm
Diameter: 485, 385 mm

The QTL 385 and QTL 485 come in two heights, 85 and 105 mm. When using the integrated cooling ring suitable for water cooling a continuous torque range of 407 up to 907 Nm can be achieved. In combination with a very high motor constant, ...

Power: 217, 138, 99, 53 W
Intensity: 4.86, 5.61, 8.65, 11.07 A
Torque: 0.29, 0.66, 2.31, 1.08 Nm

The QTR 65 is the smallest torque motor in the Tecnotion torque motor range. This motor is optimized for small and low voltage applications. With a 65mm outer- and 17mm inner diameter this motor offers unique opportunities for small applications. ...

Intensity: 4.5, 6 A
Torque: 60, 90 Nm
Rotational speed: 150 rpm

No drive belt adjustment / replacement Fewer parts Better servo performance Silent operation ●Meaning Of Torque Motor (DD motor) 1. Direct Driver - direct drive。 2. Due to the large torque, it is also called torque servo。 3. ...

Intensity: 2.8 A
Torque: 12 Nm
Rotational speed: 120 rpm

No drive belt adjustment / replacement Fewer parts Better servo performance Silent operation ●Meaning Of Torque Motor (DD motor) 1. Direct Driver - direct drive。 2. Due to the large torque, it is also called torque servo。 3. ...

Intensity: 1.7 A
Torque: 1 Nm
Rotational speed: 0 rpm - 300 rpm

E-TDB series torque motors cover all sizes and applications currently on the market Torque motors can be directly connectedto customer loads,saving connection mechanisms such as reducers and gear boxes, making the overall mechanism small ...

Pulsation dampener DAMPER Fluid connections: 1” BSPP Air connection: Ø 8 mm Max air pressure: 8 bar Capacity Volume: 200 CC ~ Material: PP, PVDF+CF, POMc e SS Apply to: P55 – P60 – P90 – P120

Pulsation dampener DAMPER Fluid connections: 1” 1/2 BSPP Air connection: Ø 10 mm Max air pressure: 8 bar Capacity Volume: 700 CC ~ Material: PP, PVDF+CF, POMc e SS Apply to: P170 – P252 – P400

Pulsation dampener DAMPER Fluid connections: 2” BSPP Air connection: Ø 12 mm Max air pressure: 8 bar Capacity Volume: 2900 CC ~ Material: PP, PVDF+CF, ALU e SS Apply to: P700 – P1000

B1.462 Built-in pistons B1.462 Built-in pistons single acting with spring return max. operating pressure 250 bar plunger piston piston diameter: 25 .. 50 mm stroke: 8 and 12 mm max. push force: 12.2 .. 48.7 kN external thread: G1/8 .. G1/2

4.1070 Built-in pistons 4.1070 Built-in pistons single acting with spring return max. operating pressure 250 bar plunger piston piston diameter: 25 .. 50 mm max. push force: 12.2 .. 48.7 kN strokes: 8 and 12 mm external thread: ...

PULSATION DAMPENERS - ALBIN PUMP Albin Pump ALHP, pulsation dampener for peristaltic hose pump and other pump technologies. The ALHP, pulsation dampener, reduces the pulses created in the discharge line by the hose pump. We have ...

Intensity: 5, 6.1, 11, 8.7 A
Torque: 0.36, 0.85, 1.3, 2.78, 4.6 Nm

Unleash unparalleled torque and control with our Torque Motors. Our Torque Motors provide unparalleled torque and control, enabling precise rotation and positioning in high-torque applications such as rotary tables and machine tooling. • ...

Intensity: 6.3, 8.3, 11, 10.5, 4.9 A
Torque: 8.82, 5.29, 2.63, 1.66, 0.68 Nm
Rotational speed: 1,962, 2,200, 220, 484, 1,296 rpm

Unleash unparalleled torque and control with our Torque Motors. Our Torque Motors provide unparalleled torque and control, enabling precise rotation and positioning in high-torque applications such as rotary tables and machine tooling. • ...

Intensity: 31, 17, 10, 62, 34 A
Torque: 1.7 Nm - 24 Nm
Rotational speed: 5,879, 10,583, 17,638, 2,940, 5,345 rpm

Unleash unparalleled torque and control with our Torque Motors. Our Torque Motors provide unparalleled torque and control, enabling precise rotation and positioning in high-torque applications such as rotary tables and machine tooling. • ...

Torque: 21.6 Nm - 42,900 Nm
Rotational speed: 143 rpm - 4,590 rpm
Diameter: 160 mm - 1,288 mm

TMB+ is an evolution of the renowned TMB Torque Motor that provides a combination of increased performance and new features while maintaining the interfaces of existing motors. In fact, the torque density of TMB+ is increased by up to ...

Torque: 80.5 Nm - 20,800 Nm
Rotational speed: 674 rpm - 5,450 rpm
Diameter: 198 mm - 1,050 mm

The TMK torque motor range is a unique design redefining the working range of torque motors in the industry. The advanced electromagnetic design of TMK motors allows them to reach speed levels that were totally unsuspected for torque ...

Torque: 24.5 Nm - 4,990 Nm
Rotational speed: 110 rpm - 1,000 rpm
Diameter: 210, 290, 360, 450, 530 mm

The TML torque motor is a low weight and low cost version of the famous TMB motor. This motor range is perfectly suited for applications that require the dynamic performance level of a direct drive torque motor while being less demanding ...

Power: 0.75 kW - 315 kW
Intensity: 54.2 A
Torque: 2 Nm

YE4 series ultra high efficiency TEFC 3-phase electric motor is designed and manufactured by our company. The efficiency conforms to grade 2 stipulated in GB186132-2020 , it also conforms to the recommednded values (IE4)in IEC60034-31 ...

Power: 0.75 kW - 315 kW
Intensity: 59 A
Torque: 1.2 Nm

Special air-cooled motor for Shield Machine The full name of the shield machine is shield tunnel boring machine. It is a special construction machine for tunneling. Modern Shield machines incorporate mechanical, electrical, hydraulic, ...

Power: 1.1 kW - 250 kW
Intensity: 54.5 A
Torque: 390 Nm

YGP series three-phase asynchronous motor for roller table is based on YG series three-phase asynchronous motor, which expands the range of frequency conversion speed regulation, increases the number of machine base and power grade, ...

Power: 53 W - 2,546 W
Intensity: 3.9 A - 38.1 A
Torque: 0.29 Nm - 183 Nm

Torque motors, or torque engines, commonly referred to as direct motors or direct drive, represent advanced technology in the field of mechanical and electrical engineering, being particularly suitable for certain applications in the ...

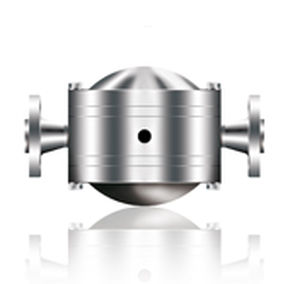

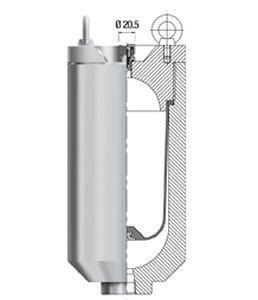

Bladder pulsation dampers are the most common type, they are used in the vast majority of applications. The separator element is made of a rubber material (nitrile, EPDM, FKM, butyl, silicone, Aflas, Hypalon, etc …). DESCRIPTION ...

DESCRIPTION AND PERFORMANCE The body can be made of plastic or metal. The most commonly used plastics are PVC, polypropylene and PVDF. The body of the metallic ones can be manufactured in stainless steel AISI 316L, carbon steel or ...

ACTIVE DAMPENER For those applications in which working pressure is variable. It is the perfect pulsation dampener match for AOD PUMPS. ACTIVE DAMPENER incorporates an active valve which is connected to a pressurized air line. The valve ...

Power: 0.5 kW - 10 kW
Torque: 5.4 Nm - 17,300 Nm
Rotational speed: 3 rpm - 2,000 rpm

Torque motors execute the rotary movement without mechanical transmission. This principle eliminates the use of other components, such as gears, pulleys, chains and reducers. The movements are dynamic with low friction and high flexibility. ...

Power: 1,508 W - 31,206 W
Torque: 48 Nm - 596 Nm
Rotational speed: 1,000, 500, 300 rpm

Direct drive torque motors from the 8LT series are permanently excited torque motors for applications that require extraordinary dynamic characteristics and positioning precision as well as compact size and reduced weight. These are available ...

Power: 30 kW
Rotational speed: 100 rpm - 1,000 rpm

Different from the concept of traditional power frequency torque motor, direct drive torque motor refers to a synchronous motor with a torque ranging from hundreds to thousands to tens of thousands of nm, which can output power at a low ...

Power: 82.1 W - 1,303.4 W
Intensity: 1.4 A - 49.6 A
Torque: 0.2 Nm - 116.37 Nm

The S-series motors are Aerotech’s high-performance brushless, frameless torque motors. The motors feature rare-earth magnets for maximum torque and acceleration in a compact assembly – while delivering excellent velocity stability. •Frameless ...

Torque: 20 Nm - 35 Nm
Rotational speed: 1,500 rpm

Leroy-Somer’s frameless torque motors consist of a separate rotor and stator which are assembled directly inside the machine. The result is a compact, fully-integrated motor with improved dynamic performance. The rotor and stator can ...

Power: 15 kW - 394 kW
Intensity: 68 A - 536 A
Torque: 1,200 Nm - 22,100 Nm

TM-series direct-drive torque motors offer high torques at low speeds and can replace traditional gearbox based systems in many applications. Available with 400/480-600VAC windings, torques up to 22000Nm, power ratings to 394kW and speeds ...

Power: 0.88 kW - 46.2 kW
Torque: 180 Nm - 13,800 Nm
Rotational speed: 68 rpm - 4,000 rpm

The torque motors are water-cooled kit motors that have been optimized for high torques of up to 13,800 Nm. They consist of a stator (MST) with three-phase winding and a rotor (MRT) with permanent magnets. Typical areas of operation for ...

Power: 5 kW - 2,000 kW

TF TORQUE MOTORS / -GENERATORS: HIGH TORQUE – LOW SPEED Characteristics - Electric direct drive - High maximum torque - Low rated speed - Large shaft sleeve - Extremely quiet - No rotor loss - Equipped with NdFeB magnets (rare ...

Torque: 10 Nm - 500 Nm
Rotational speed: 300 rpm - 1,000 rpm

Precision is standard - only the motor is customized! Manufacturing brushless motors with permanent magnet motors since the early 90s, Lafert offers extensive proven expertise in this continuously developing technology. This know-how ...

Power: 0.6 kW - 6.3 kW
Torque: 12 Nm - 240 Nm
Rotational speed: 250 rpm - 500 rpm

Torque Motors In applications with high torques at low speeds, ESR torque motors are often a good alternative to geared motors or motor-gear box combinations. These direct drives have a higher stiffness and position accuracy compared ...

Used on Controllers, Instruments and Recorders to Dampen Pressure Pulsation Eliminate Gage Pointer Flutter Aids in Providing More Accurate Pressure Indication Decreases wear on a Gage’s Geared Movement The PD8100 ...

Torque: 0 Nm - 58,000 Nm

Synchronous motor type SM, module ZOLLERN also offers the permanently excited synchronous motor as a module. This supplements the kit of the electrically active components to include a closed cooling jacket, a motor flange, the bearing ...

Power: 38 W - 255 W
Torque: 0.049 Nm - 4,067 Nm
Rotational speed: 0.02 rpm - 100 rpm

Direct Drive DC torque motors are ideal for servo applications where it is desirable to minimize size, weight, power and response time, and to maximize rate and position accuracies. These motors provide a servo actuator that can be attached ...

General Dynamics offers a comprehensive line of brushless and brush-type motors designed to meet a wide range of requirements. We also design and develop motors to meet custom specifications. The direct drive DC motor is ideally suited ...
