Compact zero-point clamping units

... centering and fixing with screws. This mechanical zero point clamping system holds fixture plates in different sizes by changing the mounting position. -Feature- -Pillar-Shaped Pull ...

... connect The SPEEDY connect series are fast closing clamps made of high-quality tool steel and a housing made of anodised, high-strength aluminium with very low space requirements due to compact external ...

... closing clamp that clicks and holds instantly without energy input. For release, it only needs an air connection with 4 - 8 bar pressure. Special features of the STARK.easyclick product family: Click: Clamping ...

ZERO POINT CLAMPING SYSTEM STARK.airtec Single acting, pneumatic The STARK.airtec is a pneumatically operated zero point clamping ...

ZERO POINT CLAMPING SYSTEM STARK.classic.NG Single-acting, hydraulic or pneumatic STARK.classic.NG clamping elements are clamped with spring force and released hydraulically ...

Extremely quick clamping and releasing Small, compact size makes tight gauges possible. Adjustable draw in force up to 20 kN Long service life Integrated mounting and clamping checks ...

push-in clamping process 85 mm in diameter and only 19 mm high 5 kN clamping force - 10 kN holding force release with 3 - 8 bar of air pressure release time 0.1 sec.

... special arrangement of the clamping mechanism inside the plate allows not only the insertion of mounting holes and keyways, but also an individual center hole up to Ø 80 mm, which offers a possibility for rotary joints. ...

... special arrangement of the clamping mechanism inside the plate allows not only the insertion of mounting holes and keyways, but also an individual center hole up to Ø 80 mm, which offers a possibility for rotary joints. ...

... special arrangement of the clamping mechanism inside the plate allows not only the insertion of mounting holes and keyways, but also an individual center hole up to Ø 38 mm, which offers a possibility for rotary joints. ...

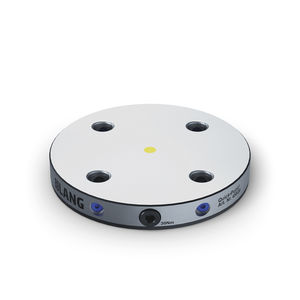

The largest round Quick•Point® single plate is prepared for mounting on machine tables with cross-shaped slots, such as Matsuura or Hermle, thanks to its mounting holes (4x 90° / radius 110 mm). On its underside, there ...

The largest of the round Quick•Point® single plates with Ø 246 mm contains neither mounting holes nor keyways as standard and, due to its available surface, can be modified in many ways to be provided with the corresponding ...

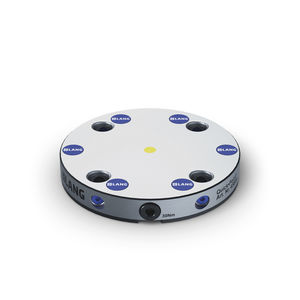

The Quick•Point® 96 round plate with a diameter of 196 mm can be provided with individual mounting holes to attach it to rotary tables and trunnions. Example possibilities are Haas TR 200, Fanuc Robodrill/Häberle and ...

The smallest of all Quick•Point® 96 round plates has a total of six mounting holes. Four holes that can be used for machine tables with 63 mm slot spacing and additionally two further holes in line, which makes this zero-point ...

... possibility of mounting Quick•Point® 96 clamping studs, in order to be converted into a receiver plate.

... round plate is a solution for small tables and axes. With a diameter of only 116 mm, it is the most compact of all Quick•Point® zero-point plates. It ...

The clamping edge of this zero-point plate allows it to be mounted on essentially all machine tables if clamps are used for this purpose. The Quick•Point® ...

The positioning clamping pin allows fast clamping, fastening, adjusting, changing and securing of workpieces, plates, fixture systems etc. Material Heat-treated steel, tempered, blackened ...
