Coupling/decoupling networks

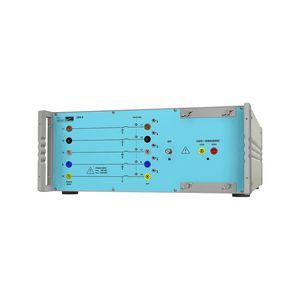

The FP-COMB 32 is a combined automatic three-phase Coupling/Decoupling Network (CDN) for Surge Combination Wave, Ring Wave and EFT/Burst testing.  It is fully compliant with the standard ...

... recommendations for the coupling and decoupling component values within the CDN. These values are largely based on the European model for AC power lines. FP-SURGE 100M2 includes all the IEC and EN requirements ...

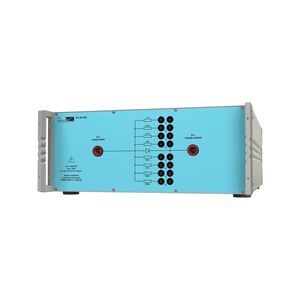

... To obtain maximum flexibility only decoupling and protection elements are included in the DEC 6. Coupling circuits, which depends on the EUT to be tested, can be placed separately in the test setup. ...

... Included cables and/or connectors • Up to 1000Vdc EUT voltage • Ready for EV and railway testing • Excellent decoupling • Highest EUT voltage supported • Modular and expandable solution

Coupling Decoupling Network (CDN) for application with 12kV impulse genertors according to IEC 61000-4-5. Manual coupling path selection by operator. 480V or 690V versions ...

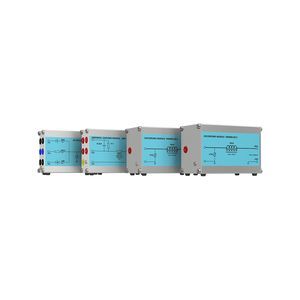

Modular coupling and decoupling for 4 un-symmetrical signal and data lines used with Combination wave (CWG) generators according to IEC 61000-4-5.

... comes with multicolor LED coupling indication, included calibration adapter for EFT and a complete set of connectors for EUT and power supply.The standard model can be complemented with many options. Ring wave, ANSI ...

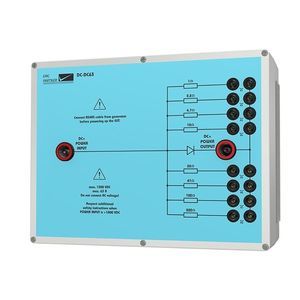

Damping circuit to CDN for DC testing up to 1500V @ 125A. Your Benefits • Maximum EUT current 125Adc • Maximum EUT voltage 1500Vdc • Includes 8 resistor values

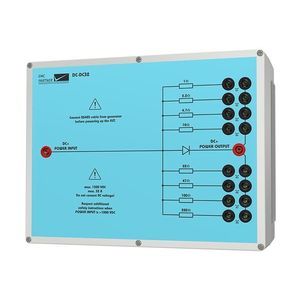

Damping circuit to CDN for DC testing up to 1500V @ 63A. Helps prevent oscillations occuring when a standard CDN is used together with an electronic DC power source. Your Benefits • Maximum EUT current 63Adc • Maximum EUT ...

Damping circuit to CDN for DC testing up to 1500V @ 200A. Helps prevent oscillations occuring when a standard CDN is used together with an electronic DC power source. Your Benefits • Maximum EUT current 200Adc • Maximum EUT ...

Damping circuit to CDN for DC testing up to 1500V @ 32A. Helps prevent oscillations occuring when a standard CDN is used together with an electronic DC power source. Your Benefits • Maximum EUT current 32A • Maximum EUT voltage ...

... series - Coupling decoupling networks for unshielded communication lines Surge pulses and Telecom Surge pulses are applied to unshielded symmetrical interconnection lines (communication ...

Coupling/decoupling assembly for unshielded and shielded high-speed communication lines up to 1GBit/s Highlights Coupling to unshielded and shielded lines with up to 4 pairs ...

The Capacitive Coupling Clamp, EFTC 2012, provides the ability to couple Burst / EFT pulses to data lines. It can also be used for coupling to main lines where no CDN is available, for example high current ...

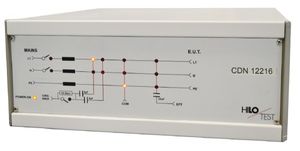

The capacitive Coupling-/Decoupling Network CDN 12216 is used in combination with the Surge generators PG 7-250, PG 10-504 or PG 12-804 and allows superimposition of surge test pulses ...

The capacitive Coupling-/Decoupling Networks CDN 4463/6463/10463/12463 are used in combination with the CE-Tester or the Surge generators PG7-250, PG10-504, PG12-804 and allow superimposition ...

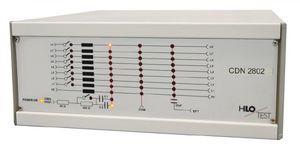

The capacitive Coupling-/Decoupling Network CDN 2802 is used in combination with the CE-TESTER and allows superimposition of surge and burst test pulses to up to eight I/O signal lines.

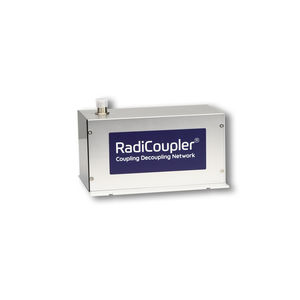

... testing on an EUT (Equipment Under Test) with several types of connecting cables, different networks are needed. The range of RadiCoupler Coupling/Decoupling Networks ...
