Stroke : 0 mm - 2,800 mm
Bore: 32 mm - 200 mm
Pressure: 0 bar - 10 bar
The new ECOLIGHT cylinder series, manufactured according to ISO 15552 – VDMA 24562, represents a new generation of ISO cylinders and uses all the technical and functional advantages of its predecessors. CILINDRI ...
Stroke : 0 mm - 2,800 mm
Bore: 32 mm - 200 mm
Pressure: 0 bar - 10 bar
... series of pneumatic cylinders is manufactured according to ISO 15552 standardsadapted to VDMA 24562 and CNOMO/AFNOR 49003 that guarantee the interchangeability of the cylinders even without mounted anchoring. PROFILE ...
Stroke : 10 mm - 200 mm
Bore: 12 mm - 63 mm
Pressure: 0 bar - 10 bar
... applications. These cylinders are available in sizes 32mm to 63 mm diameter, and comprise a single compact cylinder with integral guide rods, making it a true guide cylinder ...
Stroke : 1 mm - 500 mm
Pressure: 1.5 bar - 10 bar
Force: 30.2 N - 1,870 N
... end-position cushioning saves time during commissioning and adapts optimally to load and speed changes • Piston rod with internal or external thread • Magnetic piston for position sensing
FESTO
Stroke : 1 mm - 500 mm
Pressure: 1 bar - 10 bar
Rod diameter: 12 mm - 63 mm
With NSF-H1 grease and a clean design. Very reliable and durable due to dry-running seal. And always correctly adjusted thanks to the self-adjusting end position cushioning system PPS – without the dirt-prone adjusting screw. • Corrosion ...
FESTO
Stroke : 2.5 mm - 25 mm
Pressure: 2.5 bar - 8 bar
Force: 5.7 N - 4,712 N
Fast acting cylinder with outstanding tensile force ratio and hole pattern for fastening to VDMA 24562. • Very short overall length • High forces in a compact size • Piston rod with ...
FESTO
Stroke : 0 mm - 40 mm
Force: 0 N - 3,000 N
... that is sufficient to return the piston rod without load. For applications where a high force is required in both directions there is a double acting version. The cylinder body is zinc ...
Stroke : 0 mm - 2,500 mm
Ambient temperature: -40 °C - 80 °C
The P1F Series in bore sizes Ø32 to 125mm is an ISO 15552 pneumatic cylinder suitable for standard, low & high temperatures. With various piston rod materials and wiper/rod ...
Stroke : 15 mm - 200 mm
Bore: 6 mm - 16 mm
Pressure: 0 bar - 7 bar
... rail can be selected with the model number. ・Part numbers with a rod end bracket and/or pivot bracket are available. (It is not necessary to order a bracket for the applicable cylinder separately.) ・With ...
SMC PNEUMATIC
Stroke : 0 mm - 6,000 mm
Bore: 40 mm - 320 mm
Pressure: 0 bar - 250 bar
Hydraulic cylinder in mill type design, configurable online, with piston rod on one side. Automated provision of configuration-specific dimensional drawing and 3D data. Service-oriented ...
Stroke : 100 mm - 1,500 mm
Force: 2.5 kN - 30.4 kN
Torque: 2.4 Nm - 92.2 Nm
Electric Cylinder based on ISO15552 Maintenance-free Guiding System - Sliding
Norgren
Stroke : 80 mm
Pressure: 1 bar - 12 bar
Force: 414 N - 48,228 N
Conforms to ISO 15552 (VDMA 24562 and NFE 49-003-1) High performance, stability and reliability Polyurethane seals ensure efficient low friction operation and long life Switches can be mounted flush with the profile barrel
Norgren
Stroke : 25 mm
Pressure: 2 bar - 10 bar
Force: 445 N
... in restricted space Neat, clean appearance One-piece body construction Medium: - Compressed Air Port size: - G1/8 Cylinder diameter: - 32 mm
Norgren
Stroke : 0 mm - 1,000 mm
Force: 0 N - 3,700 N
Speed: 0 m/s - 1 m/s
... ETH032 electric cylinders close the gap to pneumatic/hydraulic actuators, offering a suitable replacement with the benefits of greater control and increased reliability The ETH032 series 'High Force' electric cylinders ...
Parker Electromechanical and Drives Division Europ
Stroke : 1 mm - 2,800 mm
Bore: 32 mm - 125 mm
The low-friction cylinder is typically used as a dandy or tensioning cylinder since it is a single-acting cylinder without a return spring. The configurations are shown below: - The ...
METAL WORK
Stroke : 1 mm - 1,200 mm
Bore: 32 mm - 125 mm
Pressure: 10 bar
A typical ultra-low friction cylinder is generally used as an oscillating or tensioning cylinder. It is single acting, in the sense that compressed air is normally fed into one of the two chambers only. An ...
METAL WORK
Stroke : 1 mm - 500 mm
Bore: 32, 42, 50, 63 mm
Pressure: 10 bar
This version of cylinder is used to keep the parts fixed to the piston rod at an angle and to apply torques within the specified limits. The piston rod ...
METAL WORK
Stroke : 10 mm - 25 mm
Rod diameter: 5 mm - 32 mm
Force: 2.7 kN - 109 kN
... end with flats • supplied with O-ring and anti-extrusion ring • steel body with anti-corrosion treatment • treated steel rod
QUIRI
Pressure: 500, 600 bar
... Maximum pressure 600 bar (stroke to be limited at 80% of the whole stroke) • Corrosion resistant light alloy body • Steel (zinc plate and chromate) piston rod for cylinders ...
QUIRI
Stroke : 20 mm - 200 mm
Pressure: 350 bar
Rod diameter: 16, 20, 25, 32, 40 mm
Magnetic detection of the piston Double sealing of the rod Solid body with burnished bore Solid piston rod with treated steel Strokes precision ±0,3mm The key is ...
QUIRI
Stroke : 40 mm - 20,000 mm
Force: 0.3 kN - 60 kN
Torque: 0.14 Nm - 265.39 Nm
... Series Servo Electric Cylinder with advanced servo cylinder structure design and imported parts assembly, ensure that Lim-Tec servo electric cylinder in the domestic leading linear motion.Rolled ...
Stroke : 20 mm - 50 mm
Pressure: 0 bar - 500 bar
Force: 20.6 kN - 610 kN
B1.552 Block cylinders B1.552 Block cylinders double acting with extended piston rod for position monitoring max. operating pressure 500 bar steel ...
Stroke : 10 mm - 320 mm
Bore: 8 mm - 25 mm
Force: 30 N - 295 N
- Rod and piston seals with the highest efficiency and longest durability - Metal piston to resist to extreme stresses - Bronze guide bushing to reduce the axial clearance when rod ...
Airwork Pneumatic Equipment
Bore: 16, 20, 25 mm
Force: 18 N - 450 N
- Rod and piston seals with the highest efficiency and longest durability - Metal piston to resist to extreme stresses - Bronze guide bushing to reduce the axial clearance when rod ...
Airwork Pneumatic Equipment
Stroke : 32 mm - 63 mm
Force: 490 N - 1,870 N
- Rod and piston seals with the highest efficiency and longest durability - Metal piston to resist to extreme stresses - Bronze guide bushing to reduce the axial clearance when rod ...
Airwork Pneumatic Equipment
Stroke : 5, 15, 10 mm
Pressure: 2, 7 bar
Rod diameter: 16, 6, 10 mm
... Steel Piston rod AISI 303 5 Polyurethane Rod seal 6 Nickel plated brass Shape body 7 Zinc-plated steel Locking screw Fluids Filtered and lubricated compressed air as well as non ...
Stroke : 0 mm - 140 mm
Bore: 80, 50, 60 mm
Pressure: 200 bar
... linear, oscillatory or rotary movement. Front hitch lifting hydraulic cylinder DE Series: main features Electro-upset stem or from chromed bar friction welded Rod guide ...
Stroke : 50 mm - 200 mm
Pressure: 250 bar
Force: 12 kN
Cylinder tube: ST52,3 DIN 2393 ISO H9 Cylinder rod: UNI C45 SAE1045 – Cromo 25 Micron +/- 5. For production of the cylinders raw materials and components are exclusively ...
Stroke : 50 mm
Pressure: 250 bar
Force: max 20.0 kN
• - Cylinder tube: ST52,3 DIN 2393 ISO H9 • - Cylinder rod: UNI C45 SAE1045 – Cromo 25 Micron +/- 5. For production of the cylinders raw materials and components ...
Stroke : 500 mm - 2,480 mm
For the environment, that is hard on the materials, stainless piston rods is one step up, to make lasting cylinder. with stainless piston rod in ...
... ISO1552 pneumatic Cylinder dimensions as standard, and all special modifications you need in your project can be easily made. This provides you with ease of design. Fasteners used in pneumatic cylinders ...
Stroke : 0 mm - 600 mm
Bore: 35 mm
Rod diameter: 35 mm - 500 mm
... hydraulic is a dynamically passive hydraulic device.It is fitted when a steady movement of a moving mass pushed by a pneumatic cylinder is required. It may be coupled parallel or in line with the unit itself or opposed, ...
Bonesi Pneumatik s.r.l.
Bore: 50 mm - 125 mm
Pressure: 2 bar - 10 bar
Rod diameter: 25, 30, 40, 45 mm
The widest range of pneumo-hydraulic units on the market With the new series UI of pneumo-hydraulic units BONESI PNEUMATIK enlarges its range of hydraulic control units, developed and completely produced at its Italian headquarters, ...
Bonesi Pneumatik s.r.l.
Stroke : 100 mm - 400 mm
Bore: 63 mm - 200 mm
Pressure: 7 bar
The UDR assemblies are devices consisting of three elements : 1. The US series unit by simple or double adjastment. 2. A pneumatic valve by 5/2 bistable mechanical control, fixed on the unit. 3. An adjustable mechanical device by ...
Bonesi Pneumatik s.r.l.
HIDRACAR oleo-pneumatic suspension cylinders are the ideal oleo-pneumatic suspension system for application in truck and tractor towed load trailers, tanker trailers for the transport of liquids and slurries and fumigation ...
Stroke : 0.011 in - 50 in
Bore: 0.56 in - 2.5 in
Ambient temperature: -20 °F - 200 °F
... non-rotating cylinder features permanent grease lubrication. Design enhancements have more than double the anticipated service life of this cylinder, featuring a square piston rod ...
Bimba
Stroke : 20 mm - 350 mm
Bore: 32 mm - 100 mm
Pressure: 12 MPa - 22 MPa
... long-stroke compact hydraulic cylinders with a linear movement, an aluminum alloy body and a single rod-end (no passing-through rods). The standard version includes piston ...
VEGA SRL
Stroke : 0 mm - 2,800 mm
Pressure: 2 bar - 8 bar
Rod diameter: 32 mm - 125 mm
ATEX: optional Versions: low friction version version with tie rods version with metal scraper
AIRTEC Pneumatic
Stroke : 20 mm - 2,000 mm
Bore: 20 mm - 100 mm
Pressure: 1.5 bar - 10 bar
Cylinders series "HB" are manufactured to be fixed on machine edges without the use of mountings. The end cap acts as a mounting device in the versions: hinge-mounted, screw-mounted, feet-mounted, front flange-mounted, ...

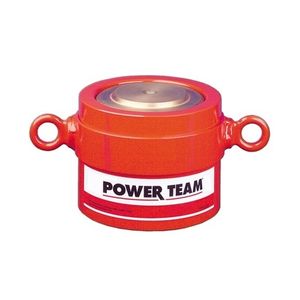

Stroke : 6 mm
Pressure: 700 bar
Force: 10 tf - 104 tf
... design. The base of all HVL cylinders must be fully supported during use. Single acting load return Nitrocarburised piston rod Low friction bearing surfaces Anti-extrusion seals Customised ...
Stroke : 1.6 mm - 101.6 mm
Bore: 0.5 in - 4 in
Pressure: 500, 250 psi
... have made us the leader in compact air cylinders. Pancake cylinders offer novel features and durable construction to ensure greater reliability. We machine the cylinder body and the ...
FABCO-AIR
Bore: 32 mm - 300 mm
Pressure: 160 bar
Rod diameter: 18 mm - 220 mm
All industries, normal & heavy duty applications, even in extreme conditions - Various mounting types - Various options possible (cushioning, sealing system, coating, speed, raw material, fluid type, paint etc.) - Easy maintenance
