Diode rectifier bridges

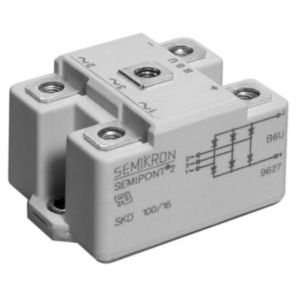

Part Number07275680; 07275690; 07275700; 07275710; 07275720; 07275730 Product StatusIn production HousingCase G 11b (LLxBBxHH)29x29x10 Switches6 VRRM / VDRM in V200-1600 ID in A20 IFSM / ITSM in A320

Reverse voltage: 100 V - 1,000 V

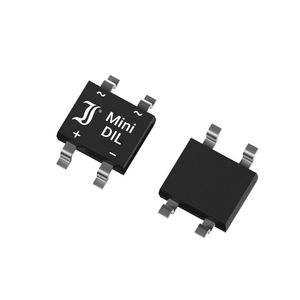

... 120mm2 of board space needed for industry standard 1.0 Amp surface mount bridge rectifier. • 50% higher density (Amps/mm2) than the industry standard 1.0 Amp surface mount bridge rectifier. • ...

DC voltage: 1,000 V
Reverse voltage: 700 V

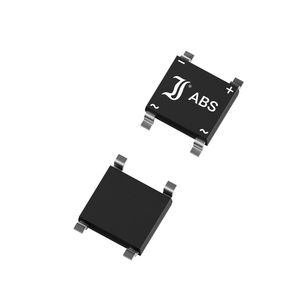

1A, 1000V, Standard Bridge Rectifier Family:Standard IF(AV) (A):1 IFSM (A):30 IR (µA):10 MSL:1 Package:ABS Status:Active TJ Max. (°C):150 VF (V):0.95 VRRM (V):1000

DC voltage: 1 V
Reverse voltage: 50 V - 1,000 V

A bridge rectifier is an arrangement of four or more discreet diodes in a bridge circuit configuration which provides the same output polarity for either input polarity. ...

DC voltage: 7.5 V - 750 V
Reverse voltage: 5 kV - 500 kV

Reverse voltage: 800 V

... Their main applications are: three phase rectifier for power supplies; input rectifiers for variable frequency drives; rectifier for dc motor field supplies; battery charger rectifiers. ...

Reverse voltage: 800, 600 V

Thanks to highly sensitive triggering levels, the 4PT series is suitable for all applications where the available gate current is limited, such as motor control for hand tools, kitchen aids, capacitive ...

Reverse voltage: 200, 400, 600, 800 V

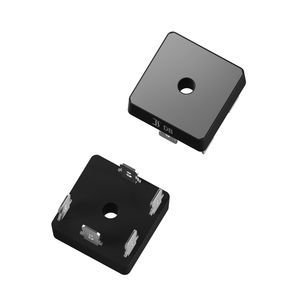

Typical Application 50/60 Hz Mains Rectification, Power Supplies Commercial grade *) Features 4mm pitch for high creepage and clearance Compliant to RoHS, REACH, Conflict Minerals l)

Reverse voltage: 100 V - 5,000 V

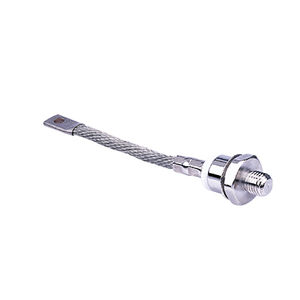

Standard Recovery Diodes Comparison: IF(AV)=5-500A VRRM=100-5000V Hermetic metal case with ceramic insulator Hermetic glass-metal seal Conform to partial national standard JB/T8949.2-1999 Capacity of supporting ...

Reverse voltage: 2 kV - 300 kV

Product Features 1. Low leakage, low power, operating junction temperature -40℃ ~ +175℃. 2. Transient large current shock resistance and reverse avalanche breakdown characteristics. 3. Original heat dissipation design, efficient ...

Reverse voltage: 36 kV

INTRODUCE: Rongtech high voltage silicon rectifier assembly is made of high quality silicon wafer chip and high reliability epoxy resin sealing structure, and through professional testing equipment inspection qualified ...

... standard product offerings. Please consult the factory for additional details and information. A9M8 18 Pulse Diode Bridge Rectifier up to 1250A

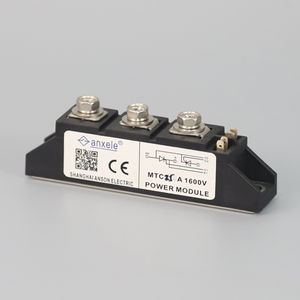

• Chips are electrically insulated form bottom plate • Package in complance with international standard.Pressure type, excellent temperature characteristics and power cycling capability • 350A below modules are forced air cooling;400A ...
