EMI filters

Frequency: 5 MHz - 1,000 MHz

... threads. CTS 4700 Series are SMT Pi Filters which are used where cost and space savings are priority while maintaining improved insertion loss. Our EMI/RFI filters are designed to suppress ...

Frequency: 400 Hz
Voltage: 0 V - 250 V
Primary current: 1 A

BL2010-01 is an EMI, EMC, & RFI Power Line Filter from BLA ETECH. Designed for single phase applications it has general purpose filtering performance and good noise suppression. Rated ...

Voltage: 250 V
Primary current: 15, 10 A

Power Entry Module with Switch. A two function power entry module combining a DPST switch and an IEC 60320-1 inlet. •Input Connector Type: IEC 60320/C-14 •Input Connector Style: Male Receptacle •Output Termination Type: 3/16"

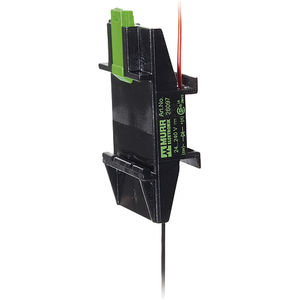

Suppressor modules from Murrelektronik ensure machine availability. The benefits of suppressor technology are enormous and far outweigh the measures linked with its deployment. For a small price, you can prevent malfunctions or faults ...

Frequency: 500 kHz
Voltage: 0 V - 50 V
Primary current: 0.8 A

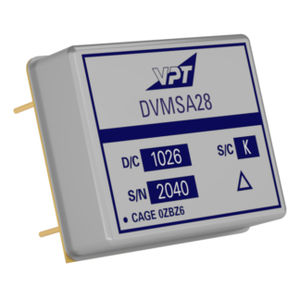

... series of hybrid EMI filters is operable over the full military (-55 °C to +125 °C) temperature range with no power derating. The DVMSA28 EMI filter is designed to filter ...

Frequency: 50, 60 Hz
Voltage: 520, 300 V
Primary current: 16 A - 230 A

... Industrial or low leakage current versions Unique Selling Proposition • Compact design with small footprint • Single-stage filter for high efficiency • Light weight design • Wide temperature range • Protection ...

EMI filters are low-pass, band-pass, or high-pass filters combined with ESD protection diodes. They also integrate pull-up and/or pull-down resistors, depending on the application. ST ...

Frequency: 0.4 kHz
Voltage: 250 V
Primary current: 10 A

General purpose two stage RFI filters incorporating an earth line choke. These filters are specifically designed to provide high level attenuation to unwanted interference that can occur ...

Frequency: 50 Hz - 60 Hz
Voltage: 250 V
Primary current: 1 A - 16 A

... temperature max. 45 °C Degree of protection IP 20 Advantages For general requirements Single‑stage filter concept Efficient filter effect against line‑bound interference emissions ...

Voltage: 10, 16, 25, 50, 100 V

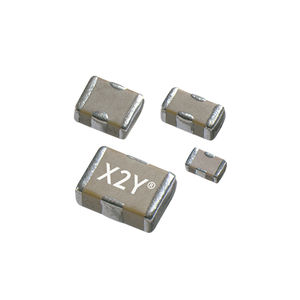

X2Ys are multi-layer ceramic devices which can be used for common-mode or decoupling filtering. Ultra low ESL allows for superior data-line filtering.

ON Semiconductor offers LC, RC, and common mode filters for a wide variety of audio and data interfaces.

Frequency: 63 Hz
Voltage: 250 V
Primary current: 1 A - 16 A

High Performance Compact Filter Very high attenuation Low leakage current, 2-stage Compact style housing UL approval UL approval for USA and Canada

Voltage: 115, 250 V
Primary current: 5 A - 30 A

High performance EMI filters, significantly higher element values than the general purpose series. C case series.

Frequency: 300 MHz
Voltage: 12 V
Primary current: 750 mA

EMI Management Integrated Circuit (EMIC) Solution We developed the world’s first IC that blocks electromagnetic waves. The device material industry for electromagnetic wave shielding is highly dependent on raw materials. ...

Frequency: 500 kHz
Voltage: 70, 40 V
Primary current: 10, 20 A

SynQor provides EMI filters for the Hi-Rel series DC-DC converters. All EMI filters provide >50dB or >80dB differential mode attenuation (model dependent) and >60dB common ...

Frequency: 50 Hz - 60 Hz
Voltage: 250 V
Primary current: 3 A - 20 A

Rated current from 3 to 20A Nominal voltage 250 Vac Very low leakage current DIN rail or panel mounting Benefits 5 Year warranty Excellent differential and common mode attenuation Compact design Designed for medical applications

Frequency: 10 MHz - 157 MHz

4-, 6- und 8-pole filter in Chebyshev or Butterworth design with very low ripple. Centre frequency between 5 MHz and 200 MHz with bandwidth from 1,5 kHz to 75 kHz. For any other frequency please contact us. Filter ...

Frequency: 22 MHz - 60 MHz

Code SS7D - SB Electrical specifications • Rated voltage : 115/250 VAC • Power line frequency : 50/60 Hz • Climatic category : HMF 25/100/21 • Max. leakage current for standard version each line to ground @ 115VAC 60Hz: 1,0mA @ ...

Frequency: 50, 60 Hz
Voltage: 480 V
Primary current: 5 A - 1,600 A

... the inverters output filter. An EMI filter, or electromagnetic interference filter, is an electronic passive device which is used in order to suppress conducted interference ...

LCL filters, which are particularly popular in the renewable energy industry today, are an efficient and economical way of ensuring and improving the quality of power fed from the energy source to the grid. Their purpose ...

Voltage: 230 V
Primary current: 3 A - 25 A

... Appropriate suppression may be achieved by the addition of a series choke and capacitor network incorporated in a filter module. The F-type series filter modules have been manufactured to complement the ...
