Flange valves

DN: 50 mm - 1,400 mm
Pressure: 2 bar - 10 bar
Temperature: 120 °C

double-sided sealing with continuous valve plate and smooth dead zone-free flow ensures unobstructed closing with densities <5% and media containing solids also available with various seal types and surface treating ...

DN: 50 mm - 200 mm
Pressure: 10 bar

BUTTERFLY VALVES AISI 316 BODY, DISC AND SHAFT,FLANGES PN10 AND ANSI 150 Butterfly valves type Wafer : - AISI316 body, disc and shaft - PTFE body seat over EPDM backseat - Assembly ...

DN: 250, 300, 400 mm

Fully welded ball valve, standard model, available in the sizes DN 250 (10”) and DN 300 (12”) full bore or from DN 300 (12”x10”) to DN 400 (16”x12”) reduced bore, PN 10÷50 or ANSI 150-300, in carbon steel with trunnion ...

Use : This valve is a square port low-pressure valve for solid loaded fluids Body shape : Flanged Type : 1724 Section : 150 x 150 – 600 x 600 Face to face : According to manufacturer ...

DN: 0.5 in - 8 in
Pressure: 0 bar - 40 bar
Temperature: -30 °C - 180 °C

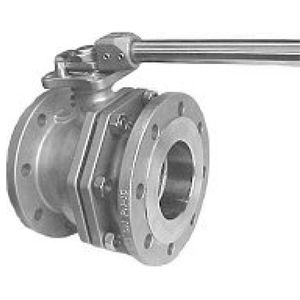

1. Full port ball valve, 2 pieces2. Flanged ends according DIN 2501-EN. PN40 DN 15 to DN 50 and PN16 DN 65 to DN 2003. Made of Stainless Steel Din 1.4408 (CF8M)4. Desing according DIN 3357 / ISO 57525. ...

DN: 2 in - 10 in
Pressure: 250, 500, 150 psi
Temperature: -30 °F - 200 °F

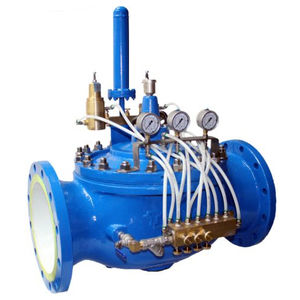

TECVAL model VRLP Pressure Reducing Valve, reduces upstream pressure to a predetermined pressure set downstream in spite of changes in flow or upstream pressure. Devices in ductile iron ASTM A536 flanged ...

DN: 2 in - 8 in
Pressure: 0 Torr - 20 Torr
Temperature: 200, 150 °C

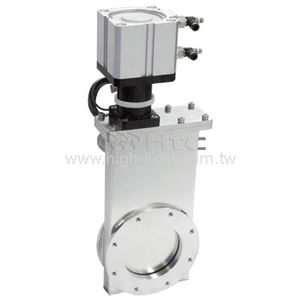

... . HV series valves are rotary action, linear travel gate valves. The gate carriage moves in the valve body on a set of wheels, moved back and forth by a manual or pneumatically-actuated ...

DN: 0.5 in - 10 in
Pressure: 150 psi
Temperature: 70 °F

... diaphragm valves are made from various materials to cater an array of different applications. A threaded version of the PVDF and PP end connections is provided. These connections are union socket that may also come in ...

DN: 5 in - 72 in
Pressure: 150 psi - 450 psi
Temperature: 150 °C

... systems. The straight-through body design maximizes flow capacity and reduces head loss. Flanged or mechanical joint end connections are available. Eccentric Plug Valves are capable of handling clean ...

DN: 15 mm - 200 mm
Pressure: 0 bar - 16 bar
Temperature: -60 °C - 200 °C

One piece ball/stem full bore system for superior performance Lining options for abrasive applications PVDF and UHMW-PE Maintenance-free and adjustable gas-tight stuffing box packing Face to face dimensions - DIN EN ...

DN: 15 mm - 300 mm
Pressure: 16 bar - 100 bar

... Stem multi-stage sealing, valve seat elastic sealing design Safe and reliable Valve stem blowout prevention, fireproof, explosion-proof, anti-static and other functions design The torque is light ...

DN: 150 mm - 1,500 mm
Pressure: 0.2 bar - 3 bar
Temperature: 200 °C

Max Leakage Class III (FCI 70-2) End Connections: Wafer, Flanged Material: Carbon Steel, AISI 304, AISI316 General Characteristics - ON/OFF or MODULATING Service or according to Customer Drawing - Outside ...

DN: 1 in - 6 in
Pressure: 10, 19 psi
Temperature: 100 °C

... widely adopted by our clients who can see the benefits this valve can bring. The valve has all of the high quality features you’d expect from the world’s leading manufacturer of PFA lined valves, ...

DN: 0.5 in - 24 in

Gate Valves serve as efficient stop valves with flow in either direction. They are commonly used when minimum pressure drop is important. Throttling is not recommended because partially open gate valve ...

... pipeline applications. Gate valves are linear motion devices used open and close the flow of the fluid (shutoff valve). Gate valves cannot be used for throttling applications, i.e. to ...

DN: 15 mm - 150 mm
Pressure: 25 bar
Temperature: 2 °C - 200 °C

The Honeywell two way control globe valve V5025A is a complete series of single-seated and pressure balanced valves PN 25. They are suitable for heating, ventilation and air conditioning systems (HVAC). ...

DN: 89 mm - 300 mm
Pressure: 300 psi
Temperature: -10 °C - 160 °C

1.Design Standard: AWWA C515 2.Nominal Pressure: 300PSI 3.Flange Standard: ASME/ANSI B16.1 Class 125 or ASME/ANSI B16.42 Class 150 or BS EN1092-2 PN16 or GB/9113.1 4.Epoxy resin coating both inside & outside the ...

DN: 15 mm - 150 mm
Pressure: 40 bar
Temperature: -40 °C - 300 °C

The valve is fitted directly in the process line or on a by-pass. A constant flow through the valve guarantees a directly representative sample

DN: 200 mm - 4,000 mm
Pressure: 25, 10, 40, 16 bar
Temperature: 0 °C - 80 °C

... to be removed with the valve remaining in service in the open or closed position. Operated with gearbox + handwheel and with ISO 5210 top flange to be coupled with an electric actuator, if required ...

DN: 50 mm - 200 mm
Temperature: -30 °C - 120 °C
Flow rate: 0 l/min - 15,000 l/min

robust chemical valve with clip seal stainless steel spindle for reliable power transmission additional, double shaft seal hand lever with practical locking function O rings included in the scope of delivery for wafer ...

... critical. Compared to standard valves, these valves provide a minimal dead space between screw and valve, which result in a higher mixing accuracy and optimal possibilities for cleaning. The ...

DN: 0.5 in - 6 in
Pressure: 16 bar
Temperature: -46 °C - 400 °C

... series is a line of ball valves manufactured by Penta. It offers an efficient solution for high-temperature fluid handling with reliability and capability. The ball valves are also produced with quality, ...

DN: 0.5 in - 12 in
Pressure: 100 psi - 290 psi
Temperature: -29 °C - 316 °C

... Face-to-Face and End-to-End Dimensions of Valves ANSI B16.34, ANSI B16.25 Valves, Flanged and Butt Weld End ASME B16.42 Ductile Iron Pipe Flanges and Flanged ...

DN: 1 mm - 50.8 mm
Pressure: 5 bar - 70 bar
Temperature: -20 °C - 60 °C

The valve model TWIN has unique design that offers for high pressure applications with compressed gas two systems of slam shut for over pressure in only one body valve. It because the valve ...

DN: 25 mm - 100 mm
Pressure: 16 bar
Temperature: 0 °C - 110 °C

... pressure up to DN 80 EPDM-seat gasket cone rotatable, protected against water hammer flange connection without drain port (drain valve cannot be added) spindle thread not in contact ...
