Large-diameter rotary encoders

Rotational speed: 3,000 rpm

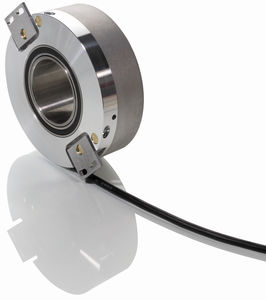

Incremental encoder, size 80 mm Low profile Internal structure in steel Through hollow shaft up to Ø44 mm Gearmotors

Rotational speed: 3,000 rpm

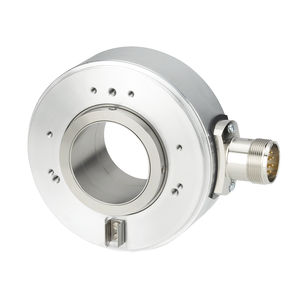

Incremental encoder, size 80 mm Through hollow shaft up to Ø44 mm Cable or connector output For hoists Technical details Output circuit - Push-Pull; Line Driver; Universal circuit Dimension - Ø 80 mm Shaft Ø ...

SMLAX is the bearingless rotary encoder for position and speed feedback on applications with large rotating shaft in potentially explosive atmospheres. • Modular rotary ...

Housing diameter: 58 mm

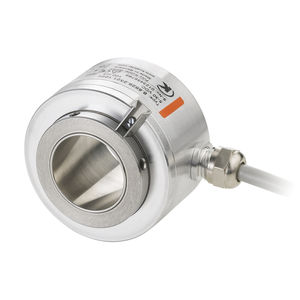

... Max 28 mm hollow shaft, through Large hollow shaft in standard dimension of 58 mm Optimized proportions, optimized costs: With a total diameter of only 58 millimeters, the 5821 series has a hollow shaft ...

Housing diameter: 100 mm

... shaft, through Max 1" hollow shaft, through Large hollow shaft up to 42 mm. The incremental encoder A020 with optical sensor technology is available with through hollow shaft up to a maximum diameter ...

Incremental encoder résolution (pulses per revolution: 65,536 unit
Shaft diameter: 380 mm
Rotational speed: 4,000 rpm

... absolute magnetic encoders have explosion protection according to ATEX: Gas (Zone 2, Ex II 3G Ex nC IIC T4 Gc). They are suitable for use in the most difficult conditions and for mounting situations where space is limited. The ...

Incremental encoder résolution (pulses per revolution: 5,000 unit
Shaft diameter: 50 mm
Rotational speed: 4,000 rpm

Robust optical rotary encoders with a wide variety of signal and device options Suitable for larger shaft diameters Options: speed switch, fiber optic transmitter, up to 2 attachments Description The ...

Incremental encoder résolution (pulses per revolution: 4,096 unit
Shaft diameter: 80 mm
Rotational speed: 3,000 rpm

Robust optical rotary encoders with a wide variety of signal and device options Suitable for larger shaft diameters Options: speed switch, fiber optic transmitter, up to 3 attachments Description The ...

Incremental encoder résolution (pulses per revolution: 3,600 unit
Shaft diameter: 150 mm
Rotational speed: 2,500 rpm

... systems and evaluation electronics. The optical rotary encoders’ maintenance-friendly scanning system facilitates simple changeover without separating motor and gearbox. Reliable The optical rotary ...

Shaft diameter: 50 mm
Rotational speed: 4,000 rpm
Process temperature: -25 °C - 85 °C

Extremely robust optical absolute encoders for larger shaft diameters Suitable for heavy duty use on main drives Options: additional incremental output, up to 2 attachments Description The optical ...

Shaft diameter: 0 mm - 1,500 mm
Process temperature: -40 °C - 85 °C

Extremely robust magnetic rotary encoders for position measuring Contactless scanning, bearing-free, wear-free For large shaft diameters, also suitable for attachments ...

Incremental encoder résolution (pulses per revolution: 200,000 unit
Shaft diameter: 1,350 mm
Output frequency: 200 kHz

... bearingless magnetic rotary encoders MAG incremental are particularly well suited for mounting situations with very limited space, without a free shaft end or with large shaft diameters ...
