Mechanical pressure switches

Pressure range: 16 bar - 600 bar
Process temperature: -20 °C - 60 °C

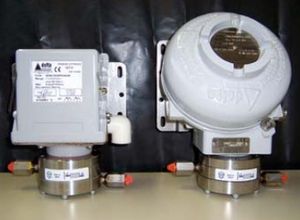

The Series 700 Pressure and Differential Pressure switches offer accurate, reliable switching in a robust cast enclosure. • HIGH OVERLOAD RATINGS • SIMPLE MAINTENANCE • SAFETY VENT ...

Pressure range: 0 bar - 1 bar
Process temperature: -20 °C - 85 °C

PSG Pressure switch for gas The PSG 901 is an adjustable pressure switch for monitoring overpressure of air and non-aggressive gases (families 1-2-3 EN437). The ...

Pressure range: 0 psi - 5,000 psi
Process temperature: -20 °C - 85 °C

Switch adjustment ranges from 0 to 300 psig through 0 to 5,000 psig Standard Zinc-plated Steel with NBR diaphragm ( 225 psig) wetted parts SPDT snap-action micro switch CE compliant ...

Pressure range: 4 psi - 8 psi
Switching power: current: 5 A
Burst pressure: 700 psi

PS41 Series Pressure Switches are designed for demanding applications where space and/or price are a concern. These switches utilize a piston/diaphragm design, which incorporates the ...

Pressure range: 1 bar - 12 bar
Process temperature: -25 °C - 85 °C

... contact adjustable pressure switches designed for hydraulic and pneumatic applications. Designed to detect a rise or fall in fluid pressure, the robust switches provide ...

Pressure range: 25, 10 psi
Switching power: current: 15 A
Process temperature: -34 °C - 43 °C

... Ranges, 0.05" to 12" w.c. Repetitive Accuracy within ±1% On the Series 1630 Large Diaphragm Pressure Switch our highest precision conventional pressure switch provides ...

Pressure range: 0 psi - 250 psi

The Square D 9012 pressure switches are control circuit rated devices ideally used in pneumatic or hydraulic systems on various machine and process applications. It is used to protect the equipment and ...

Pressure range: -1 bar - 1,000 bar
Process temperature: -40 °C - 150 °C

Ranges: » From 0 to 100 bar (differential pressure) Case: 316 Stainless Steel Sensing element: » stainless steel bellows » NBR, FKM or EPDM diaphragm » Stainless steel bourdon tube Switches : 1 or ...

Pressure range: -15 mbar - 100 mbar
Process temperature: 0 °C - 85 °C

Mechanical Pressure Switches from KOBOLD are suited for measuring, monitoring and analysis of overpressure, vacuum pressure and differential pressure. ...

Pressure range: 1,000 psi - 5,000 psi
Switching power: current: 5 A

This hydraulic pressure switch is used to either control or monitor system pressure. To control system pressure the switch can be electrically wired ...

Pressure range: 1 bar - 12 bar
Switching power: current: 1, 0.5, 3 A
Process temperature: -10 °C - 80 °C

... Alternatively the pressure dew point must be at least 10°C below lowest occurring ambient temperature. Materials Body: Zinc coated steel, seals: NBR (PE-14), FKM (PE-18) Adjustable diaphragm pressure ...

... 3 extra (1/4) connections for pressure gauge, safety valve, reducing valve. Can also be manually switched by pull knob. Connection for discharge valve is for 1/4 or 6 mm tube. Also suitable for high-voltage current. Switch ...

Pressure range: -1 bar - 10 bar

This series of switches has been expressly designed for the pressure detection of a wide range of fluids with elevate accuracy and resolution. This series has both digital and/or analog outputs and an ...

Pressure range: 0 bar - 600 bar
Process temperature: -15 °C - 125 °C

... the VDMA (German Mechanical Engineering Industry Association) standard specification 245741 and provides freely programmable as well as continuous signals. The remote display is designed for simple installation ...

Pressure range: 0 mbar - 690 mbar
Process temperature: -5 °C - 70 °C

... Double Diaphragm Pressure Switch is a special mid-size switch to meet EN 60335-2-60 insulation. Double insulated for conductive media Multiple cap and spout options are available ...

Pressure range: 20 Pa - 4,500 Pa
Process temperature: -20 °C - 60 °C

... robust, easy-to-use differential pressure switch for air and non-combustible gases. The pressure switches are used in ventilation and air-conditioning systems to monitor ...

Pressure range: 1.45 psi
Process temperature: -40 °C - 85 °C

... Low pressure differential switch for monitoring pressure, vacuum and differential pressure of air and other non combustible, non aggressive gases ...

Pressure range: 0.8 bar - 10 bar
Process temperature: -20 °C - 80 °C

... or other electrical device when there is a pressure at a point in the system (the pressure can be of any value provided it falls between the minimum and maximum operating values). Calibrated pressure ...

Pressure range: 5 bar - 350 bar
Process temperature: -40 °C - 90 °C

FUNCTION The pressure switch functions on the basis of the piston-spring principle. The microswitch (2) is actuated if the pressure lies below the configured value. The piston (6) acts ...

Pressure range: 1 bar - 100 bar
Process temperature: -20 °C - 80 °C

A Kant pressure switch Type 603 has an integrated electric change over switch. When pressure is applied, a diaphragm is deformed or a piston is displaced via a lifting ...

Pressure range: -90 Pa - 3,500,000 Pa
Process temperature: -40 °C - 150 °C

... ADJUSTABLE OR FIXED SWITCHING DIFFERENTIAL INTERNAL OR EXTERNAL SETPOINT ADJUSTMENT BRACKET FOR SURFACE MOUNTING (OPTION) GOLD PLATED CONTACTS FOR INTRINSICALLY SAFE CIRCUITS (OPTION) Indumart PSM210 Series Industrial ...

Pressure range: 0.6 bar - 600 bar
Process temperature: -40 °C - 80 °C

... Typical applications The mechanical pressure switches are used in all areas where an electrical signal is required depending on predefined pressure values. Due to ...

Pressure range: 0.3 bar - 206 bar
Switching power: current: 4 A
Process temperature: -29 °C - 120 °C

... miniature pressure-switch with high proof pressures ideal for mobile and other harsh applications. This pressure switch is a well sealed design that ...

Pressure range: 0.3 MPa - 40 MPa
Switching power: current: 6 A
Process temperature: -20 °C - 100 °C

The sensor of the switch is piston type and diaphragm type combination. Can be used to control the compressed air which contains oil mist and other gas which contains oil mist which will not exert corrosion to sensor ...

Pressure range: 1 bar - 400 bar

... Series is composed of adjustable piston pressure switches. Hydraulic oil's pressure works on the pressure switch's piston. The piston works oppositely to the spring's ...
