Miniature couplings

Torque: 5.64 Nm
Rotational speed: 31,000 rpm

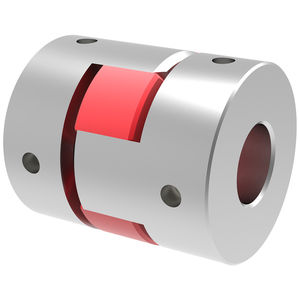

Miniature Jaw Style (L Series) Fail-safe design, with exceptional overload capacity Good torsional stiffness; vibration damping ability No metal to metal contact Widely distributed; with chose of elastomer hardness

Torque: 0.49 Nm - 3 Nm
Rotational speed: 1,200 rpm - 2,400 rpm

Mini Soft Style (MSF Series) Easy blind assembly Good shock load absorption Good abrasion resistance Zinc alloy hubs with a Polyurethane insert

Torque: 0.18 Nm - 50.7 Nm
Rotational speed: 0 rpm - 50,000 rpm

... (available on request) Applications In a drive train installation, double-element miniature couplings are the ideal complement, although single-element couplings can be used for low ...

Torque: 0.25 Nm - 250 Nm
Rotational speed: 10,000 rpm

The backlash-free Single Flex SA2 servo lamina coupling features high torsional stiffness combined with the ability to compensate axial and angular shaft misalignments. The single-cardanic design is characterized by low ...

Torque: 5 Nm - 100 Nm
Rotational speed: 10,000 rpm

... SA2 clean room version enables use in application areas with explicit surface treatment requirements (ISO class 6). The shaft coupling offers high torsional stiffness, combined with the ability to compensate axial and ...

Torque: 0.25 Nm - 250 Nm
Rotational speed: 10,000 rpm

The Double Flex DA2 backlash-free servo lamina coupling features high torsional stiffness coupled with the ability to compensate for axial, parallel and angular shaft misalignments. The single-cardanic design is characterized ...

Torque: 0.5 Nm - 100 Nm
Rotational speed: 15,000 rpm

Metal bellows couplings, mini with grub screw MATERIAL Hub aluminium. Bellows stainless steel. VERSION Bright. NOTE Play-free mini metal bellows coupling ...

Torque: 1.1 Nm - 65 Nm
Rotational speed: 9,000 rad.min-1 - 42,000 rad.min-1

... equipment / Mount machines / Medical / Machine tools / Packaging machines ● Optional Services -Couplings Bore and Keyway Additional Modification Service -Coupling Stainless Steel Screw Alteration Service -Cleanroom ...

Torque: 1.1 Nm - 35 Nm

... Actuator / Surface-mount machine / High precision XY stage / Index table Optional Services -Couplings Bore and Keyway Additional Modification Service -Coupling Stainless Steel Screw Alteration Service Please ...

Torque: 0.6 Nm - 200 Nm
Rotational speed: 6,000 rpm - 42,000 rpm

... for 1/10 taper shaft & clamping type) XHS-C (short, clamping type) Optional Services -Couplings Bore and Keyway Additional Modification Service -Coupling Stainless Steel Screw Alteration Service Application Actuator ...

Torque: 1 Nm - 15 Nm

• standard series with radial clamping hub • plug in - radial shaft displacement up to 3 mm • Torque range: 1 - 15 Nm • Shaft diameter: 3 - 19 mm • Temperature range -20 to +100°C

Torque: 0.7 Nm - 12.5 Nm

• low-cost version with set-screw • plug in - oscillation dampening • Torque range: 0,7 - 12,5 Nm • Shaft diameter: 3 - 14 mm • Temperature range -20 to +70°C

Torque: 4, 1.5, 15, 8 Nm
Rotational speed: 0 rpm - 20,000 rpm

• steel hub - welded design - temperatures up to 350°C • 4-corrugation bellows - short design - high torsional stiffness • Torque range: 1,5 - 15 Nm • Shaft diameter: 3 - 20 mm • stainless steel

Torque: 0.05 Nm - 10 Nm
Rotational speed: 0 rpm - 15,000 rpm

Miniature Metal Bellows Coupling with set screws  • Backlash-free miniature metal bellows coupling with radial set screws  • For shaft diameters from 1 – 24 ...

Torque: 0.1 Nm - 10 Nm
Rotational speed: 0 rpm - 15,000 rpm

... Perfect bellows coupling for encoders, tachometers, potentiometers, servo drives, NC axis, stepper motors  • Torque range: 0,1 – 10Nm Miniature Metal Bellows Coupling with split ...
