Miniature cylinders
{{product.productLabel}} {{product.model}}
{{#if product.featureValues}}{{product.productPrice.formattedPrice}} {{#if product.productPrice.priceType === "PRICE_RANGE" }} - {{product.productPrice.formattedPriceMax}} {{/if}}
{{#each product.specData:i}}
{{name}}: {{value}}
{{#i!=(product.specData.length-1)}}
{{/end}}
{{/each}}
{{{product.idpText}}}
{{product.productLabel}} {{product.model}}
{{#if product.featureValues}}{{product.productPrice.formattedPrice}} {{#if product.productPrice.priceType === "PRICE_RANGE" }} - {{product.productPrice.formattedPriceMax}} {{/if}}
{{#each product.specData:i}}
{{name}}: {{value}}
{{#i!=(product.specData.length-1)}}
{{/end}}
{{/each}}
{{{product.idpText}}}

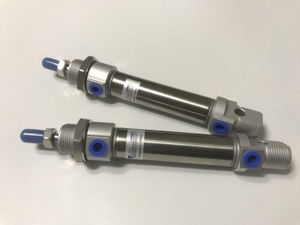

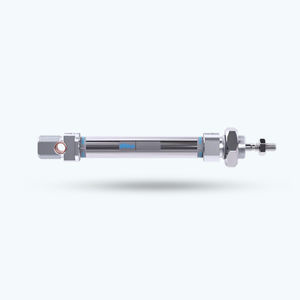

![pneumatic cylinder](https://img.directindustry.com/images_di/photo-m2/594-15536300.jpg)
Stroke : 1 mm - 500 mm
Bore: 8 mm - 25 mm
Pressure: 10 bar
Mini-cylinders to ISO 6432 with a chamfered stainless steel barrel. Can be used with different types of sensors. Available in various versions with a wide range of accessories: • with or without magnet • with ...
METAL WORK
![pneumatic cylinder](https://img.directindustry.com/images_di/photo-m2/594-15538315.jpg)
Stroke : 1 mm - 500 mm
Bore: 16, 20, 25 mm
Pressure: 10 bar
Minicylinders manufactured according to the ISO 6432 regulation having high resistance technopolymer heads and anodized aluminium liner.Available in various versions with a wide range of accessories: • with or without magnet • ...
METAL WORK

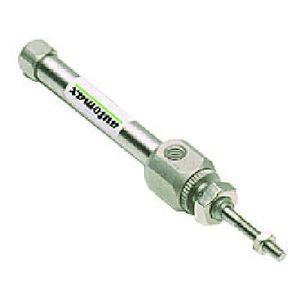

![pneumatic cylinder](https://img.directindustry.com/images_di/photo-m2/594-15539948.jpg)
Stroke : 15, 10, 5 mm
Bore: 6, 10, 16 mm
Pressure: 2 bar - 6 bar
Sinale-octing micro-cylinders with threaded body for fixing in small spoce or airedly inside the mochine body, owing to the external Oring which ensures perfect seal. ATTENTION: in case of cycles with ...
METAL WORK
![electric cylinder](https://img.directindustry.com/images_di/photo-m2/126233-7464481.jpg)
Stroke : 20 mm - 1,000 mm
Force: 1,000 N
Speed: 0 mm/s - 7.6 mm/s
... compact, robust and capable of performing well in certain outdoor environments. This linear actuator is perfect for use in small spaces where force or capability cannot be sacrificed. Options include feedback sensors, ...
![electric cylinder](https://img.directindustry.com/images_di/photo-m2/126233-17446576.jpg)
Stroke : 25 mm - 600 mm
Force: 4,000, 6,000 N
Speed: 0 mm/s - 3 mm/s
TiMOTION’s TA29 is one of our new generation medical DC linear actuators, which can lift up to 6000N, yet has a small installation dimension. In addition to this, its IP rating is up to IP66W. The TA29 is highly recommended ...
![electric cylinder](https://img.directindustry.com/images_di/photo-m2/126233-17446632.jpg)
Stroke : 25 mm - 600 mm
Force: 4,000 N
Speed: 0 mm/s - 4.5 mm/s
TiMOTION’s TA29AC is a linear actuator with an AC/DC power supply integrated into the housing that affords a maximum 4000N force (push/pull). It is controlled by 1 neutral wire and 2 line wires (extension and retraction), making it a ...
![mini cylinder](https://img.directindustry.com/images_di/photo-m2/5625-17247076.jpg)
Stroke : 10 mm - 1,000 mm
Pressure: 1 bar - 10 bar
Speed: 10 mm/s - 1,000 mm/s
... types: mechanical with bumper, pneumatic auto-cushioning, adjustable pneumatic cushioning Series 16, 23, 24 and 25 mini-cylinders are designed according to ISO 6432. It is possible to choose from three different types ...
CAMOZZI AUTOMATION
![mini cylinder](https://img.directindustry.com/images_di/photo-m2/5625-16736223.jpg)
Stroke : 10 mm - 500 mm
Pressure: 1 bar - 10 bar
Speed: 10 mm/s - 1,000 mm/s
» In compliance with ISO 6432 » Clean design » Stainless steel AISI 316 The Series 94 and 95 cylinders can be used in critical applications in which a high corrosion resistance is required (for example off-shore, ...
CAMOZZI AUTOMATION

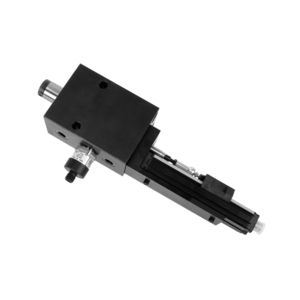

![pneumatic cylinder](https://img.directindustry.com/images_di/photo-m2/5625-19219351.jpg)
Stroke : 5 mm - 50 mm
Bore: 6, 10, 16, 20 mm
Pressure: 1.5 bar - 7 bar
... pneumatic cylinder and a precision ball bearing guide and is ideal for applications requiring a high movement frequency. Equipped with an internal magnet, proximity switches can be integrated to enable position monitoring. ...
CAMOZZI AUTOMATION
![pneumatic cylinder](https://img.directindustry.com/images_di/photo-m2/5306-17280868.jpg)
Stroke : 15 mm - 500 mm
Pressure: max 10.0 bar
Force: 10 N - 110 N
Microcylinders are the most widespread linear actuators in common use due totheir reduced dimensions. They can be applied in the most varied of sectors,from packaging to textiles, from woodworking machines to the ceramic sector andso on.
![electric cylinder](https://img.directindustry.com/images_di/photo-m2/15581-17300279.jpg)
Stroke : 50 mm - 300 mm
Force: 40 N - 500 N
Speed: 150, 300, 600 mm/s
Electric cylinders with absolute encoder for AC and DC power supply EAC series Features: Battery-free absolute sensor No external sensors required Low heat generation EtherCAT, EtherNet/IP, Profinet, Modbus ...
![electric cylinder](https://img.directindustry.com/images_di/photo-m2/4735-17650835.jpg)
Stroke : 25 mm - 500 mm
Force: 75 N - 900 N
Speed: 0.1 m/s - 0.2 m/s
... . With this the simplicity of pneumatics is combined with the benefits of electrical automation. Highly compact, ideal for small installation spaces. EPCS can be configured simply – without any software! • Complete ...
![pneumatic cylinder](https://img.directindustry.com/images_di/photo-m2/37138-12149915.jpg)
Stroke : 0 mm - 1,000 mm
Force: 0 N - 253 N
Speed: 0.2 m/s - 2.5 m/s
The P1A actuator in bore sizes Ø10 to Ø25mm is a mini ISO 6432 cylinder for standard temperature -20°C to +80°C and high temperature -10°C to +150°C suitable for lighter duties in the packaging, food ...
![pneumatic cylinder](https://img.directindustry.com/images_di/photo-m2/20987-3515789.jpg)
This easy to repair pneumatic cylinder can be safely operated at an air pressure of up to 200 PSI. The heat-coated aluminum tubing system, as well as the superior wear characteristics make this product a durable and safe ...
![pneumatic cylinder](https://img.directindustry.com/images_di/photo-m2/7115-14408743.jpg)
Stroke : 10, 30, 20 mm
Force: 43, 113, 271 N
• Bore: 10mm, 16mm, 25mm • Various MFI.... accessories for clamp-mounting on the outer diameter. • Several accessories available for mounting on the rod • Optional sensors and clamps. • FDA-H1 food-grade grease.
![bellows cylinder](https://img.directindustry.com/images_di/photo-m2/54016-18574932.jpg)
Stroke : 185 mm
Pressure: 0 bar - 8 bar
Force: 16,500 N
... maintenance or lubrication Ideal for short stroke, high-force applications High vibration isolation level Easy, compact installation
Norgren
![bellows cylinder](https://img.directindustry.com/images_di/photo-m2/54016-13081113.jpg)
Stroke : 115 mm
Pressure: 0 bar - 8 bar
Force: 10,600 N
... maintenance or lubrication Ideal for short stroke, high-force applications High vibration isolation level Easy, compact installation
Norgren
![bellows cylinder](https://img.directindustry.com/images_di/photo-m2/54016-18575011.jpg)
Stroke : 315 mm
Pressure: 0 bar - 8 bar
Force: 65,250 N
Frictionless operation No maintenance or lubrication Ideal for short stroke, high-force applications High vibration isolation level Simple to install
Norgren
![pneumatic cylinder](https://img.directindustry.com/images_di/photo-m2/69633-15836163.jpg)
Stroke : 10 mm - 320 mm
Bore: 8 mm - 25 mm
Force: 30 N - 295 N
... used in several applications. Both aluminum heads are fixed to the stainless steel tube by a rolling process. ISO 6432 cylinders can be realized with double or single effect (pushing or pulling), magnetic, with bumper ...

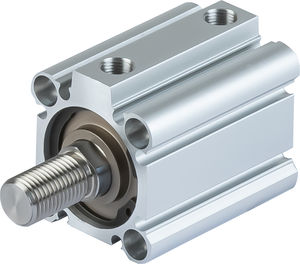

![flat cylinder](https://img.directindustry.com/images_di/photo-m2/69633-3830303.jpg)
Stroke : 5 mm - 250 mm
Pressure: 0 bar - 10 bar
... ISO 15552 accessories compatible Airwork present the new compact cylinder with great dimensions. In all applications where great push force in small spaces is required, the new ...

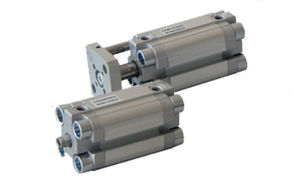

![short-stroke cylinder](https://img.directindustry.com/images_di/photo-m2/69633-11119567.jpg)
Stroke : 16 mm - 100 mm
Pressure: 0 bar - 10 bar
... pressed on the body to reduce overall dimensions CD series, is the new short stroke cylinder who replaces the previous CE series. Airwork short stroke cylinders are engineered to guarantee good ...
![electric cylinder](https://img.directindustry.com/images_di/photo-m2/11638-3346397.jpg)
Stroke : 50 mm
Force: 0 N - 300 N
Speed: 0.55 in/s
The electric cylinders of the component M9 are low-cost linear drives for small powers and feature compactness and space-saving dimensions.
![electric cylinder](https://img.directindustry.com/images_di/photo-m2/11638-7068889.jpg)
Stroke : 40 mm - 100 mm
Force: 50 N - 500 N
Speed: 0.8 in/s
010 Electric cylinder The compact electric cylinders of the component 010 are especially designed for demanding situations. They are equipped with high-quality, non-ferrous motors, withstand ...
![electric cylinder](https://img.directindustry.com/images_di/photo-m2/11638-7069241.jpg)
Stroke : 140 mm - 300 mm
Force: 60 N - 1,000 N
Speed: 4 in/s
The electric cylinders of the component 015 are best suited for industrial applications. Because of its compact and robust design it can also be used at strong conditions.

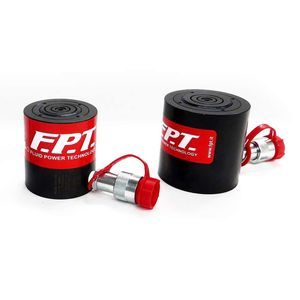

![compact cylinder](https://img.directindustry.com/images_di/photo-m2/68854-15304025.jpg)
Stroke : 50 mm
Force: 111.3 kN - 929.1 kN
... High-strength, splined and removable head. • Custom made Hydraulic cylinders high pressure can be manufactured on customer request. Compact hydraulic cylinders ...
![hydraulic cylinder](https://img.directindustry.com/images_di/photo-m2/68854-19458266.jpg)
Stroke : 6, 10, 14, 15 mm
Force: 43.1 kN - 1,496.8 kN
... outstanding eccentric load absorption. • Custom made Hydraulic cylinders high pressure can be manufactured on customer request. Extra flat cylinders - Low height hydraulic cylinder Extra ...

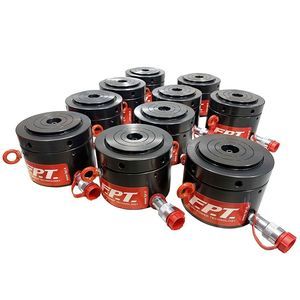

![cylinder with lock-nut](https://img.directindustry.com/images_di/photo-m2/68854-13417197.jpg)
Stroke : 45, 50 mm
Force: 606.3 kN - 5,114.3 kN
• High tonnage hydraulic cylinders with lock nut, reduced height, single acting. Push force from 60 to 500 tons with a range of strokes from 45 mm to 50 mm. • Compact hydraulic ...
![miniature cylinder](https://img.directindustry.com/images_di/photo-m2/20091-11340517.jpg)
Stroke : 25, 40, 50, 10 mm
Pressure: 1 bar - 10 bar
Rod diameter: 8 mm - 25 mm
... 8 Neoprene Bumper 9 Brass Piston 10 Polyurethane Piston seal 11 Bonded Ferrite Magnet 12 Stanless Steel AISI 304 Mini cylinder shape body 13 Anodised aluminium Back cover Fluids Filtered and ...
AIGNEP
![electric cylinder](https://img.directindustry.com/images_di/photo-m2/24821-15584508.jpg)
Stroke : 571 mm
Force: 2,670 N
Speed: 0.3, 0.76 m/s
The N2 Series is an economical, light-duty electric cylinder with a small package size designed for exceptional durability and ease-of-use. The complete system provides simple extend-retract motion, positioning ...
Kollmorgen Europe GmbH
![trunnion cylinder](https://img.directindustry.com/images_di/photo-m2/64949-20381115.jpg)
Stroke : 10 mm - 300 mm
Bore: 8 mm - 25 mm
Pressure: 1 bar - 10 bar
Mountings: Foot Mounting, Front / Rear Flange, Maie Clevis, Female Clevis,Center Trunnion, Front Trunnion, Rear Trunnion Accessories: Clevis Foot Bracket, Wall Mounting Bracket, Trunnion Bracket, Rod End Fork, Rod End Aligner, Rod End ...
![pneumatic cylinder](https://img.directindustry.com/images_di/photo-m2/64949-20381742.jpg)
Stroke : 5 mm - 80 mm
Bore: 12 mm - 100 mm
Pressure: 0.5 bar - 10 bar
High Force Output Application Packaging Machines SPMS.
![pneumatic cylinder](https://img.directindustry.com/images_di/photo-m2/118183-5329715.jpg)
Stroke : 10 mm - 300 mm
Bore: 12, 16, 20, 25 mm
CK Series (Norma ISO 6432) Miniature cylinders single and double acting Available in standard and magnetic versions.Pneumatic end of stroke cushions for the bores 20 and 25.
![pneumatic cylinder](https://img.directindustry.com/images_di/photo-m2/118183-5329853.jpg)
Stroke : 10 mm - 300 mm
Bore: 12, 16, 20, 25 mm
CKP Series Miniature cylinders double ended piston rod. Available in standard and magnetic versions. Pneumatic end of stroke cushions for the gores 20 and 25.
![pneumatic cylinder](https://img.directindustry.com/images_di/photo-m2/118183-5329887.jpg)
Stroke : 10 mm - 300 mm
Bore: 12, 16, 20, 25 mm
CT Series Miniature cylinders single and double acting with round profile end cap. Available in standard and magnetic versions. Available with radial rear mounting (type CT1) or in line (type CT2)
![electric cylinder](https://img.directindustry.com/images_di/photo-m2/191481-19137884.jpg)
Stroke : 10 mm - 1,000 mm
Rod diameter: 12 mm
Force: 1.36, 2.71 kN
Electric Cylinder DGRLT-51 belongs to light duty type of cylinder.It adopts simple but precise design model,offering customers a nice experience in practical use. It’s perfect for TV lifting, robotics, ...
![hydraulic cylinder](https://img.directindustry.com/images_di/photo-m2/191481-19139294.jpg)
Bore: 16 mm - 125 mm
Hydraulic Equipment includes Engineering Hydraulic Cylinder, Hydraulic Cylinder for metallurgical equipment, Hydraulic Cylinder For Industry and Thin ...
![hydraulic cylinder](https://img.directindustry.com/images_di/photo-m2/191481-19139487.jpg)
Small hydraulic cylinders are also common actuators in hydraulic systems, used to convert hydraulic energy into mechanical energy and achieve the movement ...
![pneumatic cylinder](https://img.directindustry.com/images_di/photo-m2/64357-2693099.jpg)
Stroke : 50 mm
... adopted technical solutions do guarantee strength and reliability over time. The cushioned version is recommended when the cylinder has to bear demanding working cycles, since it reduces wear of materials. The wide range ...
![electric cylinder](https://img.directindustry.com/images_di/photo-m2/224350-18524685.jpg)
Stroke : 150, 75, 50, 30 mm
Force: 9 N - 200 N
Torque: 3.3 Nm - 30.5 Nm
The MCE series is a miniature electric table type cylinder independently developed and manufactured by DH-Robotics,with high energy density, heavy load capacity, and compact design. It ...
![electric cylinder](https://img.directindustry.com/images_di/photo-m2/25092-19392348.jpg)
Stroke : 500 mm
... up to 65 kg, rod type with stroke, compact and highly rigid slide table type, compact rotary type used for rotational axes, gripper type with a wide selection of gripping power, and compact ...
![pneumatic cylinder](https://img.directindustry.com/images_di/photo-m2/15143-15479452.jpg)
Stroke : 10 mm - 100 mm
Bore: 6 mm - 32 mm
Pressure: 0.2, 0.1 MPa
The CXSJ series with lube-retainer is a compact dual piston actuator that is lighter and smaller than the conventional CXS unit. Its non-rotating accuracy is ± 0.1°. The CXSJL high precision ball bushing bearing type ...
![electric cylinder](https://img.directindustry.com/images_di/photo-m2/299-13031437.jpg)
Stroke : 5 mm - 20 mm
Bore: 12 mm - 100 mm
Pressure: 0 bar - 7 bar
・Compact: Overall length shortened by 30.5 mm, Height shortened by 16 mm ・Weight: Max. 69% lighter (0.32 kg → 0.1 kg) ・3 mounting options: Top mounting, Bottom mounting, Rear mounting ・Piping is possible in 4 directions. ・The solid ...

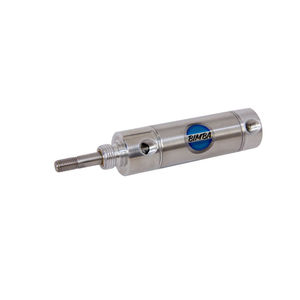

![pneumatic cylinder](https://img.directindustry.com/images_di/photo-m2/7046-19713067.jpg)
Stroke : 0.011 in - 50 in
Bore: 0.75 in - 3 in
Ambient temperature: -20 °F - 200 °F
... Line® cylinder with adjustable cushions features permanent grease lubrication that more than doubles the anticipated service life of this design. Cushions offer solutions to applications with destructive kinetic energy ...
![hydraulic cylinder](https://img.directindustry.com/images_di/photo-m2/6283-4930909.jpg)
Stroke : 30 mm - 250 mm
Force: 0 N - 9,000 N
This product, which is manufactured by Bansbach, is a micro-hydraulic cylinder. It has a compact design and is capable of delivering high forces of up to 9000 N. Its piston is available from 13 mm and ...
