Outside diameter: 80 mm - 200 mm
Bore size: 8 mm - 16 mm
Elegant design taking account of ergonomic and hygienic requirements are the outstanding features of spoked handwheels GN 522.5. Owing to the materials used, they are especially suitable for use in corrosive atmospheres ...
Otto Ganter GmbH & Co. KG
Outside diameter: 125, 140, 160, 200 mm
Bore size: 12, 14, 18 mm
Spoked handwheels GN 924 are distinguished by modern design. The removable plastic cover shrouds the fixing components such as countersunk washers and protruding or recessed shafts.
Otto Ganter GmbH & Co. KG
Outside diameter: 100 mm - 200 mm
Bore size: 10 mm - 18 mm
The directions of stainless Steel-Handwheels GN 950.6 are totally aligned with the Handwheels DIN 950.
Otto Ganter GmbH & Co. KG
Outside diameter: 80 mm - 375 mm
MATERIAL High-resilience polypropylene based (PP) technopolymer, black colour, matte finish. BOSS-CAP Anodised aluminium self-adhesive front plate. VRTP.375: cover in polyester based technopolymer (PBT), RAL 7035 grey colour, ...
ELESA
Outside diameter: 80 mm - 200 mm
Material High-resilience polypropylene based (PP) technopolymer, black colour, matte finish.Produced from FDA compliant raw material (FDA CFR.21 and EU 10/2011). Boss-cap AISI 304 stainless steel self-adhesive front plate (adhesive ...
ELESA
Outside diameter: 125 mm - 250 mm
... colour, matte finish. SPECIAL EXECUTIONS ON REQUEST - Handwheels with safety GN 000.5 (see page 117). - GN 324 handwheels with black epoxy resin coating, matte finish. - GN 322.7 handwheels ...
ELESA
Outside diameter: 100 mm - 375 mm
Bore size: 18 mm - 48 mm
Zinc plated steel outcropping hub. Material Black thermoplastic, glass fiber reinforced, mat.
GAMM
Outside diameter: 100 mm - 300 mm
Bore size: 24 mm - 58 mm
Zinc plated steel hub. Material Black phenolic plastic. The Gamm Industrail Handles' VR triple-spoked wheel consists of a black phenolic plastic material housing finish, a zinc-plated steel hub, and a number of other key features ...
GAMM
Outside diameter: 100 mm - 300 mm
Bore size: 24 mm - 58 mm
Zinc plated steel outcropping hub. Material Black phenolic plastic.
GAMM
Outside diameter: 80 mm - 250 mm
PLASTIC/ALUMINUM SOLID HANDWHEELS NSP, SP, NDA, DA With/without Revolving Handle type are available. -Feature- Ideal for marine machines, food processing machines, and the like
Imao Corporation
Outside diameter: 80 mm - 500 mm
SPOKED HANDWHEELS ALV, NV,V With/without Handle-Mounting Tapped Hole type are available. Note: Handle must be ordered separately NRP, RP With/without Revolving Handle type are available SY Revolving fold-away ...
Imao Corporation
Outside diameter: 80 mm - 250 mm
ANGLED-SPOKE HANDWHEELS AL2SP, NSTH, STH With/without Handle-Mounting Tapped Hole are available. Note: Handle must be ordered separately NS, S, NBS, BS With/without Revolving Handle type are available.
Imao Corporation

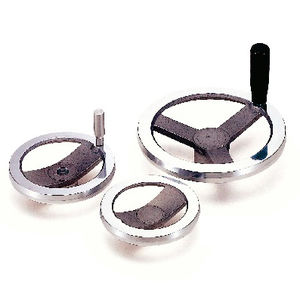

Outside diameter: 100, 125 mm
Bore size: 10, 12, 14 mm
Disc handwheels, aluminium with fold-down cylindrical grip Material: Handwheel aluminium. Cylinder grip and hub cover black thermoplastic. Cylinder grip pin black oxidised steel. ISO 4027 grub ...

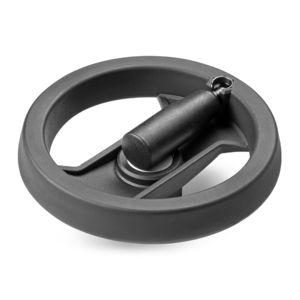

Outside diameter: 80 mm - 346 mm
Handwheels 2-spoke plastic, with revolving grip Material: Handwheel reinforced and stabilised polyamide. Centre plugs polyamide. Tapped bush steel. Tapped insert for cylinder grip brass. Version: Handwheel ...

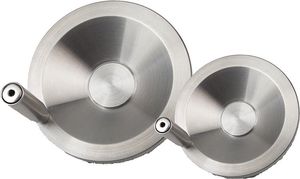

Outside diameter: 76.2 mm - 254 mm
Disc handwheels stainless steel with revolving grip Material: Stainless steel 1.4301. Version: Turned, bright. Hub is centre bored. On request: Stainless steel 1.4401. Stainless steel 1.4404. Stainless steel 1.4571.
Outside diameter: 35 mm - 60 mm
Use: for manual drive of the column and profile positioners with 12ø, 8ø or 6ø pin. The foldaway grip reduces the dimensions and the risk of movements caused by accidental impact. State of supply black reinforced polyamide, RAL1006 ...
NEFF offers an extensive range of common accessory parts for screw jacks, from precise gimbal bearings to ready-to-install pillow block bearings. We also manufacture custom-tailored solutions in our modern machine park on request.
NEFF offers an extensive range of common accessory parts for screw jacks, from precise gimbal bearings to ready-to-install pillow block bearings. We also manufacture custom-tailored solutions in our modern machine park on request.
Outside diameter: 98 mm - 375 mm
Bore size: 10 mm - 40 mm
• Hand wheel with fixed hand crank • 5 sizes available as standard • Constructed from cast aluminium • Polished finish • Other wheel types available
Outside diameter: 80 mm - 400 mm
Bore size: 10 mm - 32 mm
... sides. Hub machined; rim turned and mirror-finished on all sides, non-machined surfaces cleanly blasted. Material Handwheel Aluminium permanent-mould casting
HALDER France
Outside diameter: 80 mm - 400 mm
Bore size: 10 mm - 34 mm
Hub machined; rim turned and mirror-finished on all sides, non-machined surfaces cleanly blasted. Material Handwheel Grey cast iron GG Machine handle DIN 39 EH 24450. Steel, turned, zinc-coated by ...
HALDER France
Outside diameter: 80 mm - 400 mm
Bore size: 10 mm - 34 mm
Hub machined; rim turned and mirror-finished on all sides, non-machined surfaces cleanly blasted. Material Handwheel Light metal Al Machine handle DIN 98 EH 24460. rotating Steel, turned, zinc-plated ...
HALDER France
Outside diameter: 80 mm - 500 mm
Bore size: 10 mm - 32 mm
Emile Maurin Eléments Standard Mécaniques
Outside diameter: 80 mm - 500 mm
Bore size: 10 mm - 40 mm
Emile Maurin Eléments Standard Mécaniques
Outside diameter: 100 mm - 160 mm
Bore size: 10 mm - 16 mm
Emile Maurin Eléments Standard Mécaniques
Outside diameter: 80 mm - 250 mm
Bore size: 18 mm - 36 mm
PH is a standard model with a plastic handwheel. There are two types of hub materials. PH---- Cast iron hub PHS---- Stainless steel hub It comes with a Grip mounting hole. There is no grip supplied with this product. ...
NBK (Nabeya Bi-tech Kaisha)
Outside diameter: 80 mm - 250 mm
Bore size: 26 mm - 50 mm
Standard model with a stainless steel handwheel With / without grip mounting hole can be selected by the end symbol of the part number. HSM---- With grip mounting hole HSM-N---- Without grip mounting hole
NBK (Nabeya Bi-tech Kaisha)
Outside diameter: 80 mm - 300 mm
Bore size: 28 mm - 58 mm
With / without grip mounting hole can be selected by the end symbol of the part number. AV---- With grip mounting hole AV-N---- Without grip mounting hole
NBK (Nabeya Bi-tech Kaisha)
Outside diameter: 80 mm - 160 mm
Bore size: 18 mm - 60 mm
... designed as disk handwheels and the larger diameters as spoked handwheels. For each type, the handwheels can be ordered with or without revolving cylindrical handle as well as with ...
Insert of treated steel, Duroplast black 4-spoke handwheels Ø100 / form N Insert of treated steel
Insert of treated steel, Duroplast black Disc handwheels Ø45 / form H
Outside diameter: 35 mm - 86 mm
Duroplast black Disc handwheels Ø86 / knurled colour black material thermoset FS 31 DIN 7708 country of origin Spain customs tariff number 39269097 RoHS RoHS compliant
Outside diameter: 129, 159, 346 mm
Bore size: 32, 40, 67.5 mm
Materials: Reinforced and stabilised polyamide. Oils and greases resistant. Surface: Satin. Colour: Black (RAL 9011). Central cap: Grey polyamide cap (RAL 7035 cod. 13). Alternative cap colours: Orange (RAL 2004 cod. ...
Boteco
Outside diameter: 80 mm - 250 mm
Bore size: 10 mm - 26 mm
Material: Handwheels aluminium. Cylinder grip black thermoset PF 31-DIN 7708, centre pin electro zinc-plated steel. Version: Wheel rim turned and polished. Radial and axial run-out of rim < IT 12. On request: Hubs ...
HEINRICH KIPP WERK GmbH & Co. KG
Outside diameter: 4 in - 8 in
Angular Three Spoked Handwheels Nylon Handwheels: Angular, three spoked, nylon Material: Wheel, 6-6 Nylon Hub, Cast Iron Finish: Wheel, Black Hub, Black Oxide Threaded Brass Inserts have serrated ...
Jergens, Inc.
Outside diameter: 100 mm - 200 mm
Spoked Handwheels, Stainless Steel, Solid Version Material: Wheel body: Cast stainless steel 1.4308 (CF-8). Rim turned, matt blasted. At version B/G: Handle Duroplast PF31, black, glossy finish. Spindle: Stainless ...
Outside diameter: 5, 8, 6, 12 in
Bore size: 38, 44, 58 mm
Cast Iron Hand Wheel - Flat - Imperial (WDS 130) (Available)£37.84 - £90.97 Each WDS 130 Type - Spoked Hand Wheels / Material - Cast Iron MATERIAL Cast Iron BS 1452 Gr 250 See 8193 Series for ...
WDS Component Parts
Outside diameter: 4 in - 12 in
Bore size: 1.25 in - 3 in
Hand Wheels – Angled-Spoke Rounded Design (Cast Iron or Aluminum) Handles, Knobs & Screw Clamps Rugged, utility-grade hand wheels that can be easily customized for any application. Available in six sizes, ...
... fittings of different types Brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability Operating temperatures range from -53 to 121 degrees C (-65 to 250 degrees F)
Outside diameter: 25 mm - 45 mm
Material:Black grey thermoplastic.Version:Steel parts black oxidised.Note:The hub cover is supplied unassembled. The handwheels can be secured to a shaft using a transverse pin or by parallel key connection together ...
Additional charge for installing handles Machined handwheels include faced hub that is true with rim Bore, keyway, and set screw prices are available upon request
Morton Machine Works
Outside diameter: 50 mm - 80 mm
HAND WHEEL , HIGH GLOSSY WITH PLASTIC SQUARE Form C with ripple rim and plastic square Plastic grip thermoset PF 31
Outside diameter: 100 mm - 300 mm
Material: PF Black duroplast FS 31 DIN 7708. Zinc-plated steel hub. (*) 5 spokes.
TECNODIN
Outside diameter: 80 mm - 250 mm
Bore size: 8 mm - 45 mm
BIMECCANICA SRL can customize the screw drive, in case of manual motion, through the use of various types of operating handwheel. Our factory is able to realize boring and slot for tab for assembly with ...
