Piston cylinders

Stroke : 7, 15, 25, 50 mm

... escapements are operated by a 5/2 valve. In the starting position, the upper piston rod is driven out and the lower one is driven back. Following the reversal, the upper piston rod can only be driven ...

Stroke : 75 mm - 350 mm
Force: 60 N
Torque: 60,000 Nm

A complete range of very high precision brushless electric cylinders 3 sizes available Speed up to 800 mm/s High precision 25 µm Satellite roller screws Integrated brushless motorization Extreme durability

Stroke : 0 mm - 360 mm
Force: 49 kN - 2,156 kN

... purpose cylinders. Strong spring for quick retraction, can be used in all positions. Collar threads, piston end threads and base holes, for accessory mounting. Hard chrome-plated piston ...

Stroke : 0.011 in - 50 in
Bore: 0.75 in - 2 in

... Z-Line cylinder feature permanent grease lubrication. Design enhancements have more than double the anticipated service life of this cylinder, designed for extremely tough applications. This robust design ...

Stroke : 15 mm
Force: 8.5, 8.1 kN

... Stationary Cylinder suited for versatile workpieces and a variety of chuck types. Easily mountable to milling and drilling machines. Easily mounted to Work Gripper multiplate. Pneumatic or Hydraulic Pressure can ...

Stroke : 1 in - 16 in
Bore: 1.13 in - 5.13 in
Force: 5 tf - 100 tf

... springs speed piston return and increase spring life. ■ Collar threads are standard on all C-Series models, simplifying fixturing applications. ■ Removable rubber boots protect collar threads during transport and storage. ■ ...

Stroke : 0 mm - 2,500 mm
Pressure: 6 bar
Rod diameter: 160 mm - 320 mm

... pressure dew point must be at least 10°C below lowest occurring ambient temperature. Double acting cylinder with adjustable cushions and magnetic piston for proximity sensors. Standard stroke lengths ...

Stroke : 1.25 in - 1.5 in

MICO Straight Bore Master Cylinders MICO Straight Bore Master Cylinders are single piston, stright-bore type with a return spring, and are available with or without an integral reservoir. ...

Stroke : 25 mm - 3,000 mm
Bore: 32 mm - 100 mm
Pressure: 1 bar - 10 bar

... with ISO 15552 standard ensures complete interchangeability of these cylinders with the previous ones to ISO 6431 / VDMA 24562 standards, defining the dimensions of both the “nude” cylinder than assembled ...

Pressure: 0 bar - 250 bar
Rod diameter: 25 mm - 200 mm

... special cylinders according to individual specifications. All cylinder versions can be produced as servo actuator with/without an integrated position measuring system. Specially developed are Universal ...

Stroke : 12 in
Bore: 0.5 in - 3 in
Pressure: 200 psi

... 304 stainless steel cylinder tube and a 303 stainless steel piston rod as standard. Maximum air flow, fast cylinder response and smooth rod movement are assured thanks to its full, unrestricted ...

Stroke : 15 mm - 350 mm
Force: 50 kN - 1,000 kN

... loading. • Cylinder body and piston are made from solid chromium-molybdenum steel and heat-treated. • Hard-chromium plated piston with replaceable, heat-treated saddle. • Metric mounting ...

Stroke : 5.5, 5 in
Bore: 2, 1 in
Pressure: 8.9, 7,250 psi

... extension of piston. Spring automatically extends piston rod when pump pressure is released. Features DESIGNED FOR PULLING AND TENSIONING APPLICATIONS. ■ Heavy-duty compression spring provides ...

Stroke : 3.25 mm - 175 mm
Torque: 2.2 Nm - 28 Nm
Speed: 0.5 m/s

... Compact Cylinders feature a compact design for applications where cylinder length is critical. The self-lubricating nitrile piston seal increases cylinder performance ...

Stroke : 50 mm - 1,500 mm
Force: 0.5 daN - 2 daN
Speed: 0.8 m/s

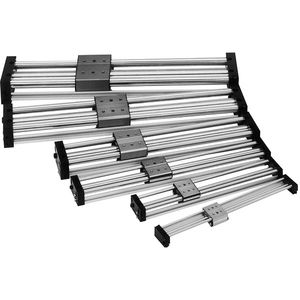

Magnetic rodless cylinder sizes 6 to 40mm with a design allowing a footprint close to the total stroke. End-of-stroke adjustment and integrated hydraulic shock absorber. "Reed" or electronic switch position detection.

... ambient temperatures. The Hydropa HYKS series of hydraulic cylinders exhibit a sturdy welded/bolted construction with honed and seamless cylinder barrels and ground, precision hard chrome-plated piston ...

Pressure: 50, 80, 100, 160 bar
Rod diameter: 12 mm - 140 mm
Force: 0.95 kN - 402.12 kN

TIE ROD CYLINDER (ZHZ) BY AHP MERKLE •Hydraulic Cylinder according to DIN/ISO 6020/2 •Maximum operating pressure: 160 bar •Piston diameters from Ø 25 mm to Ø 200 mm •Multiple mounting ...

Stroke : 6 in - 60 in

Magnum Line 3000 psi Welded Cylinder - Double Acting - Heavy Duty STANDARD FEATURES Heavy duty welded construction 3000 PSI Bore sizes from 2" to 5" Stroke sizes 6" to 60" Unitized piston Clevis, ...

Stroke : 25.4 mm - 362 mm
Pressure: 700 bar

Hydraulic cylinder jack Capacity : 4.5 - 100 ton Stroke : 25.4 - 362 mm Max working pressure : 700 bar   • All cylinders are single-acting with spring return • Pistons ...

Stroke : 25 mm - 1,000 mm
Bore: 32 mm - 320 mm
Pressure: 0.5 bar - 12 bar

ISO 15552 FARBO pneumatic cylinders are manufactured on CNC machining centres to guarantee low dimensional tolerances and unvarying performance over time. The barrels and end-caps are fully anodized to reduce wear and ...

Stroke : 42 mm - 155 mm
Pressure: 700 bar
Force: 125 kN - 931 kN

... With Single and Double acting ranges Tritorc cylinders show versatility in operational requirements and fulfill the needs of the user. All single acting cylinders are spring return and double acting ...
