Power amplifiers

Voltage: 207 V - 253 V
Current: 2 A
Power: 2 W

Application: Isolating switch amplifier with intrinsically safe control circuit class [Ex ia] IIC for inductive contacts according to DIN 19234 or NAMUR or mechanical contacts in hazardous industrial plants. Case:NORYL ...

Voltage: 50 V
Current: 750 mA
Power: 19 W

The Model 2348 2 MHz Power Amplifier has a continuous current output of 750 mA at voltages up to 50 Vp-p. This provides 18.75 W of AC or DC output power to 500 kHz. The ...

Avago Technologies offers a broad selection of rf and microwave amplifiers including Power Amplifiers (PAs), Gain Blocks/Drivers, Low Noise Amplifiers (LNAs) and variable ...

Voltage: 2.8 V - 8.5 V
Current: 10 mA
Power: 6, 8, 10, 12 W

12W Stereo Class-D Audio Amplifier with Synchronous Boost, SSM and External Audio Feedback The PAM8965 is an extremely high-efficiency Class-D stereo audio power amplifier with an ...

Voltage: 380, 220 V
Current: 40, 30, 4, 3, 4.5 A
Power: 90 W - 3,300 W

The Power Amplifier is designed specifically for inductive (or capacitive) loads. It has the characteristics of low interference, good linearity, low distortion, high stability, and wide frequency range. It ...

Power: 3,000 W
Frequency: 10 kHz - 100,000 kHz

ETS-Lindgrens Model 8000-08 RF Power Amplifier is a 3000 W power amplifier, designed primarily for EMC applications that include MIL-STD 461 RS103, 200 V/m. Utilizing ...

... package are optional Application • An amplifier can boost the (average) power of a laser output to higher levels (→ master oscillator power amplifier = MOPA). •It ...

Voltage: 160 V
Current: 10 A
Power: 100 W

The MP104 is a high voltage, high output current, dual channel power amplifier targeted for piezo devices used to drive inkjet printer nozzles. Based on the Apex MP103, this next generation hybrid references ...

Voltage: 38 V - 265 V

The WS-56EYAxx series high-power optical amplifier is a high-power multi-port output fiber amplifier with a gain spectrum bandwidth of 1535~1565nm. It is mainly designed ...

Voltage: 12 V - 14 V
Power: 1 W
Frequency: 5.2 GHz - 5.8 GHz

... switch. If the TRX input is without power, the device is in the receive mode. In order to switch to transmission safely, the input should have a power of at least -10 dBm. It should also be noted that ...

Voltage: 0.78 V - 1 V
Power: 1,800 W - 5,500 W
Frequency: 20 Hz - 20,000 Hz

Voltage: 100 V - 230 V
Power: 0 W - 3 W
Frequency: 1 kHz - 50 kHz

... applications the new MOPA microlasers from STANDA utilize Master Oscillator Power Amplifier platform that combines company's renowned STA-01 microlaser oscillators together with a highly ...

Frequency: 71 GHz - 86 GHz

... non-terrestrial E-Band communications. 71-76GHz and 81-86Gz High Power Amplifiers A range of configurable options integrating high power amplifiers (PAs) ...

Voltage: 150 mV
Current: 4,000 A
Frequency: 5,000 Hz

PWA series power amplifier is composed of power exchange unit, electric control unit, signal modulation and protection unit, driving unit, power amplification ...

Voltage: 5 mV
Current: 59 mA

... innovative power saving facility which when enable can offer up to 450 hours battery life with a 350 ohm bridge connected. In normal power mode up to 35 hours battery life is achieved with a 350 ohm bridge. ...

Voltage: 3.3 V
Current: 5.6 mA
Frequency: 22 Hz - 29 Hz

... the k-band. The Low Noise Amplifier chip comprises a gain control function to choose between low- and high-gain mode, both providing a linear amplification. A power enable pin allows for switching between ...

Power: 5 W
Frequency: 750 MHz - 4,000 MHz

... need external DC power supply ● Wide Freq range 750-4000MHz ● Small Size:2.0 x 2.0 mm ● Very Low Loss & Low VSWR ● Excellent directivity ● Broad frequency coverage ● High isolation ● Good Repeatability ● Tape ...

Power: 400 W

... overtemperature, over-current and high reflected power. The amplifier is equipped with precise forward and reflected power detection circuitry for correct configuration and monitoring ...

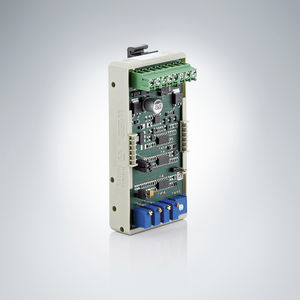

Digital power amplifier for single solenoid and double solenoid valves Usable as a replacement of PAM-195, PAM-196 and PAM-197 For all typical proportional valves of all manufacturers ...

Voltage: 0 kV - 50 kV
Current: 0 mA - 12 mA

... Specifications Output Voltage Range: 0 to ±50 kV DC or peak AC Output Current Range: 0 to ±12 mA DC or peak AC Slew Rate: Greater than 350 V/μs Large Signal Bandwidth: DC to greater ...

Power: 180 W

... LCD Display Description The Power Amplifier Type PA14-180 has been developed to drive any type of exciter requiring a 180 VA power amplifier. It has a useable frequency ...

Voltage: 24 V
Current: 5 mA

Montalvo s M-3224 Strain Gauge Load Cell Amplifier is powered by 24 VDC. The M-3224 is used in conjunction with one or two load cells to indicate and monitor web tension by amplifying the load cell signal.

... The evaluation unit supplies a high frequency signal from which the energy for the sensor signal amplifier is generated. This in turn generates the power supply for the connected sensor. The bridge supply ...

Voltage: 1.8 V - 5.5 V

This IC is an audio power amp that can operate at low voltage. Operating supply voltage supports 3V and 5V power amp, making it ideal for applications such as mobile phones and other portable communication devices. ...

Voltage: 30 V - 420 V
Current: 2 mA - 20 mA

HV-LN Series Low Noise Power Amplifier The Model LN power amplifiers offer extended output power, voltage capabilities, low distortion, versatility ...
