Rack-and-pinion valve actuators

Torque: 3, 5 Nm
Pressure: 40 psi - 150 psi
Ambient temperature: -4 °F - 176 °F

MT Series rack & pinion pneumatic actuators continue the Max-Air tradition of easy integration, flexible customization, and reliable operation. Features include two ISO bolt circle patterns drilled directly in the body, NAMUR standard ...

Torque: 3 Nm - 4,479 Nm

AVCON offers range of Pneumatic Actuators in double acting and spring return designs. These inexpensive compact design actuators operate through 90° angle for actuation of ball valves, plug valves, butterfly valves and other rotary devices ...

Torque: 1 Nm - 5,504 Nm

The NIBCO® Series NDA/NSR pneumatic actuator features a patented spring design and a durable anodized extruded aluminum body. They are specifically designed for quarter-turn applications, including ball valves, butterfly valves, dampers ...

Torque: 2,054 Nm

A comprehensive range of pneumatic actuators, conforming to EN ISO 5211, providing compact, reliable and economical powered operation for all types of quarter turn valves The aluminium PremiAir Rack & Pinion actuator has all features ...

Torque: 2 Nm - 4,449 Nm

Bettis RPE Series Pneumatic Rack and Pinion Valve Actuators A tough, work-horse product that offers reliable use in countless process applications. Newly-enhanced rack and pinion actuator is compact and lightweight, suitable for installation ...

Torque: 8 Nm - 2,365 Nm

Spring return or double acting, stainless steel, quarter turn, rack and pinion actuator.

Torque: 7 Nm - 4,803 Nm

Quarter turn (90°) & Type 1 Half turn (180°) Compact rack and pinion actuator, Type 1, for quarterturn movement and modulating, Double Acting (DA) or Spring Return (SR). Body of Anodized Aluminum in blue colour as standard, other finishes ...

Torque: 10 Nm - 6,356 Nm

TUNING SPRING RETURN PNEUMATIC ACTUATOR -20°C to +80°C Racks and pinion type spring return pneumatic actuator - 0 to 90° rotation with +/- 5° thru adjustment screws - Extruded and anodised aluminium body - Epoxy coated aluminum caps - ...

Torque: 7 Nm - 584 Nm

Hayward's PCS Series Pneumatic Actuator provides an air-to-spring 4-piston rack & pinion layout. Also featuring an adjustable travel stops, position indicator and manual override the Hayward's PCS Series Pneumatic Actuator has an ISO ...

Torque: 2,000 Nm

The "S" Series is a line of forged stainless steel actuators engineered by Air Torque. These actuators are constructed with high quality housing materials in A182 F316/EN 10088/3 1.4401, capable of resisting corrosion. This series ...

Torque: 4.6 Nm - 12,502 Nm
Pressure: 3 bar - 8 bar
Ambient temperature: -40 °C - 150 °C

Dual piston Rack & Pinion design allows for high cycle life, quick operating speeds, and symmetrical mounting Available in Double Acting or Spring Return designs Modular spring packs allow for easy spring rate changes ...

Torque: 4.6 Nm - 6,110.4 Nm
Voltage: 220, 24 V
Pressure: 2 bar - 8 bar

Pneumatic rotary actuator are greatly used in ball valve and butterfly valve. Low cost, compact design, long working life. Color: orange, blue, black, dark gray. we accept OEM colors and brand. Solenoid valve standard: Namur Accessories ...

Torque: 5 Nm - 4,944 Nm
Pressure: 2 bar - 8 bar
Rotation angle: 0 ° - 90 °

•Prelubricated and tested to minimum 1 million operations •Direct valve mounting per ISO5211 •Visual valve position indicator •Extruded aluminium body with 50 micron hard anodizing •Corrosion resistance -500 hour minimum salt spray ...

Torque: 9 Nm - 9,767 Nm
Pressure: 3 bar - 8 bar
Ambient temperature: -40 °C - 150 °C

Proval A210 Series innovative, compact design pneumatic rack and pinion rotary actuators including all critical components are manufactured in-house using dedicated state-of-the-art CNC machines following ISO quality assurance standards. ...

CRANE® Air Rack and Pinion Pneumatic Actuators feature an aluminum alloy construction which provides superior corrosion resistance and durability. Direct-mounted, compact actuation solutions for Center Line® valves. Features And Benefits ...

HIGH TEMPERATURE (PH): High temperature actuators to pilot ball, butterfly and plug valves for high temperature environments. May be actioned with air or any nonagressive fluid up to 8 bar pressure (to 15 bar, on demand). Working ...

We supply pneumatic actuators with an very good price and a high quality. We have double- and single-acting actuators in stock. These are ATEX approved. Our standard Best-Torque actuators type AP, a rack and pinion design, are supplied ...

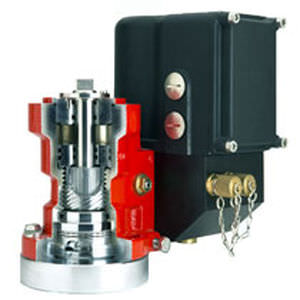

The Local Power Unit - Mini (LPUM) is an integrated electro-hydraulic system for remote control of valves and actuators. The LPUMs are basically in two different versions: LPUM-S for single-acting spring operated actuators and LPUM-D ...

Torque: 3 ft.lb - 18,735 ft.lb

Double Acting & Spring Return Pneumatic Actuator Pneumatic rack and pinion actuator and double acting pneumatic actuator and spring return actuators available for ball valves and butterfly valve automation. Top quality bearings and ...

Torque: 8,000, 4,000 Nm
Pressure: 8 bar

Single-acting pneumatic actuator for mounting on quarter-turn valves with ISO 5211 compliant shaft ends (butterfly valves or ball valves). Actuator flange to ISO 5211. Control pressure up to 8 bar. Force transmission via scotch-yoke kinematics ...
