Straight valves

DN: 0.25, 0.5 in
Pressure: 40 bar
Temperature: -40 °C - 100 °C

... powered mass flow meters red-y compact series. Tightly Closing Valves The valves are tight-closing Different Device Setups The valves are available as straight ...

DN: 15, 20 mm
Pressure: 16 bar
Temperature: 4 °C - 40 °C

... 16 bars Valve with free nut BSP / DEÇA fitting straight valve with brass handle 2/3-1/3 Ref. 654 DN 20-3/4" to 32-1 Valve with free nut BSP / DEÇA fitting straigth ...

DN: 0.125, 0.25, 0.375, 0.5, 0.75 in
Pressure: 0 bar - 10 bar
Temperature: 0 °C - 60 °C

Quick exhaust valve enabling high purge speeds to be reached (valve technology) directly on the wiring circuit or cylinder supply port.

DN: 15 mm - 300 mm
Pressure: 16 bar - 40 bar
Temperature: -40 °C - 100 °C

Two-way control valves with one-seat design A. Hock Series 2000 valves are our two-way control valve all-rounders. Available in both standard and more complex versions, the valves ...

DN: 20 mm - 200 mm
Pressure: 10, 16 bar

• Face to Face: IEC60534 • Flow feature: straight line, equal percentage, quick opening • Stem seal: bellows & packing seal, packing seal • Adjustable rate: 50:1 • Trim material: PFA, F46, PTFE • Designed ...

DN: 15 mm - 1,200 mm

A gate valve, also known as a sluice valve, is a valve that opens by lifting a round or rectangular gate/wedge out of the path of the fluid. The distinct feature of a gate valve ...

DN: 15 mm - 80 mm

Stainless Steel Ball Valve Material: SS304 or SS316L Standard: DIN, SMS, ISO Size:DN15-DN80, 1/2"-3"

DN: 10 mm - 150 mm
Pressure: 160 bar - 250 bar
Temperature: 350 °C

– shut-off globe valve with bellows (A10) and regulating globe valve with bellows (A11 rough – regulation) – forged body (lifetime up to 60 years) – non-cobalt overlay – threaded yoke – multi-layer ...

DN: 0.125, 0.25, 0.375, 0.063 in
Pressure: 10,000, 15,000 psi
Temperature: 650, 450, 350, 200 °F

... and AF6 for on-off service and insure long life on valve seats. Regulating tip stems are available at no additional cost, add - REG to the catalog number. Glands and sleeves are supplied with each valve ...

DN: 6.35 mm - 12.7 mm
Pressure: 16 bar
Temperature: -10 °C - 90 °C

Model: - Straight gauge valve - Material body: - Brass CW 617 N according to EN 12165 Connection: - Thread male/female BSPP - Material stem: - Brass CW 614 N according to EN 12164 Material Handle: - ...

DN: 0.5 in - 8 in

Globe straight-way series is a very versatile control valve for the main applications. Its high performance derives from using a balanced and cage-guided plug. ET series is particularly suitable for heavy ...

DN: 15 mm - 50 mm
Pressure: 25 bar
Temperature: -10 °C - 130 °C

... cartridges (Fig. KRR9) and DZR brass straight automatic balancing valves Additional information Material - DZR Brass Typology - Dynamic balancing Connection - ISO 7/1 DZR brass automatic ...

DN: 100 mm

A plug valve is a quarter-turn manual valve that uses a cylindrical or tapered plug to permit or prevent straight through flow through the body. The plug has a straight ...

DN: 15 mm - 200 mm
Pressure: 40 bar

Bolted yoke bonnet. • Rising stem and handwheel. • Stainless steel or PTFE sealings. • Distance between sides according to DIN 3202 F-1.

DN: 15 mm - 300 mm
Pressure: 6, 40, 10, 16, 25 bar
Temperature: 225, 300, 350, 400 °C

high thightness (leakproofness class - Aacc. EN -12266 - 1) compact settlement environment-friendly tests acc. EN- 12266-1 flanges drilled according to EN 1092-2 for body material A, C, E flanges drilled according to EN ...

DN: 15 mm - 300 mm
Pressure: 10 bar
Temperature: -40 °C - 120 °C

Channel: Straight Through Type Structure: Fixed Ball Valve Function: Bypass-Valve Transport Package: Carton/Plywood Box Temperature: Normal Temperature Trademark: BAODI

DN: 0.125 in - 0.5 in
Pressure: 0 bar - 255 bar
Temperature: -29 °C - 250 °C

... Minor series valves are the finest regulation version of our needle valves. They are called Minor since they are of reduced dimensions and precision regulation. Ideal for instrumentation panels and for ...

DN: 6 mm - 50 mm
Pressure: 6, 10, 8, 4 bar
Temperature: -20 °C - 140 °C

... compression of the diaphragm. The diaphragm valve can be actuated either manually or pneumatically (stainless steel pneumatic diaphragm valve) and controlled by control tops and solenoid valves. Straight ...

DN: 25 mm
Pressure: 16 bar
Temperature: 0 °C - 300 °C

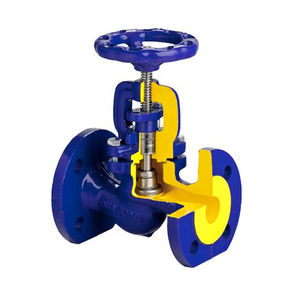

Flange-Globe valve DN 25 in straight through with bellow flange acc. DIN EN 1092 material grey cast iron DN-JL1040 with Isolation plug seal: - metal design: - straight through with ...

DN: 15 mm - 1,200 mm

... ANSI 150LB Stainless Steel Flanged Gate Valve with Handwheel Function Description: Gate valve is a valve that the valve plate moves along the vertical direction ...

Blocking valves control the opening and closing of piping systems. They control the inlet, flow or outlet of liquids and gases. Flow valves regulate the volume flow of the fluid used. We have throttle ...

Pressure: 200,000 Pa - 600,000 Pa
Temperature: -25 °C - 85 °C

Abstract： Electromagnetic pulse valve modelDCF-T-40Sφφ127A127B～200C35D24E30GG1½ technical standard Working pres technical standard Working pressure: 0.2~0.6MPa Working medium: clean air ...

The Vatac Unlined Straight Through diaphragm valve provides a reliable and economic olution in a variety of slurry applications. The valve is easily maintained in-line and there are ...

DN: 50 mm - 400 mm

Straight through globe valve is a type of adopts a straight-through valve body and controls the medium flow by the disc moving up or down. This straight ...

DN: 160 mm
Pressure: 4 bar - 6 bar
Temperature: -30 °C - 150 °C

GDQ pneumatichigh vacuum angle valve is an electro-pneumatic valve controlled for turn on or shut off the vacuum airflow,the applicable media is air and non-corrosive gases. It has two structures, ...
