Wall-mount transformers

Output power kVA: 0.105, 210 kVA
Primary voltage: 115, 230 V
Secondary voltage: 24 V

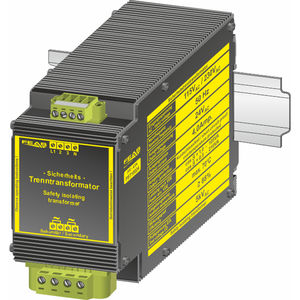

The Safety isolating transformer of the PST100 series are powerful and robust transformers to power devices with low alternating input voltage. The PST10024 transforms AC line voltage into short circuit ...

Output power kVA: 0.105 kVA
Primary voltage: 115 V - 230 V
Secondary voltage: 12, 24 V

The Safety isolating transformer of the PST100 series are powerful and robust transformers to power devices with low alternating input voltage. The PST10012 transforms AC line voltage into short circuit ...

Primary current: 5 A - 8,000 A
Frequency: 50 Hz - 60 Hz

self estinguishing thermoplastic material UL94-V0 operating frequency 50÷60 Hz insulation reference voltage 0,72 kV test voltage 3 kV x 1’ 50 Hz insulation classe E protection degree IP 20 continuous overcurrent 1,2 In rated ...

Output power kVA: 0.01, 0.02, 0.04 kVA
Frequency: 50 Hz - 60 Hz

operating frequency 50-60 Hz min. rated burden 2VA insulation reference voltage 0,72 k V test voltage 3 kV x 1'50 Hz insulation classe E protection degree IP 30

Output power kVA: 0 kVA - 0.2 kVA
Primary voltage: 100 V - 1,200 V
Secondary voltage: 100, 110 V

DESCRIPTION Measuring VT's cl.0.5 DETAILS QUICK DELIVERY Technical data self estinguishing thermoplastic material UL94-V0 operating frequency 50÷60 Hz insulation reference voltage 0,72 kV test voltage 3 kV x 1’ 50 Hz insulation ...

Primary current: 1 A - 300 A
Secondary current: 5, 1 A
Frequency: 40 Hz - 60 Hz

Winding primary current transformer Protection current transformer Fixing with DIN rail and wall mounting 6mmq terminals connection Small size High performance ...

Output power kVA: 0 kVA - 0.2 kVA
Primary current: 40 A - 4,000 A
Secondary current: 1 A - 5 A

"THROUGH BAR" measuring current transformers for currents

Output power kVA: 0.01 kVA - 0.01 kVA
Secondary voltage: 100 V - 100 V
Frequency: 40 Hz - 60 Hz

Measurement voltage transformers for voltages from

Electric power: 200 W - 400 W
Output power kVA: 0.2 kVA - 0.4 kVA
Primary voltage: 10 V - 24 V

General Characteristics • Dimensions according to CEI-UNEL 21009 std • Manufactured and tested acc. to IEC 61869-1/2 • Rated Insulation level up to 36 kV • Frequency 50 or 60 Hz • Rated primary current (Ipr) Single primary ...

Electric power: 200 W - 400 W
Output power kVA: 0.4, 0.2 kVA
Primary voltage: 10 kV - 24 kV

The peculiar characterisNcs of this innovaNve product consist in having a phase-to- phase VT to be connected to the MV line through plug-in bushings, type A interface, protected by two MV fuses, all contained in an ≥ IP 55 metal case; ...

Primary current: 100 A - 5,000 A

Small size and easy mounting. Range output burden: 100A - 5000A. High accuracy and reliability. TECHNICAL SPECIFICATION - Indoor use. - Policarbonate with self-extinguishing V0. - Sealable secondary terminals. - Highest voltage ...

Primary current: 1 A - 4,000 A

The TCB's different characteristics are fixing system: to wall, to cable/passing bar or to DIN rail by accessories supplied with the CT, Measuring Transformers: the short circuit on terminals ...

Primary current: 30 A - 2,000 A

... developed to fix systems. It can either be place into walls, DIN rail by an accessory provided with the C.T. or be place directly to cable by screws also provided with the C.T.. In measuring transformers, ...

Primary current: 250, 160, 630 A
Secondary current: 1 A

... 50mm • Burden : 1VA • Wall Mount Brief Specifications Features : Sensitive, Accurate Accuracy : Class 1.0 Current Transformer Type : Rectangular Window Type Input Current : 160A, 250A, 630A Mounting ...
