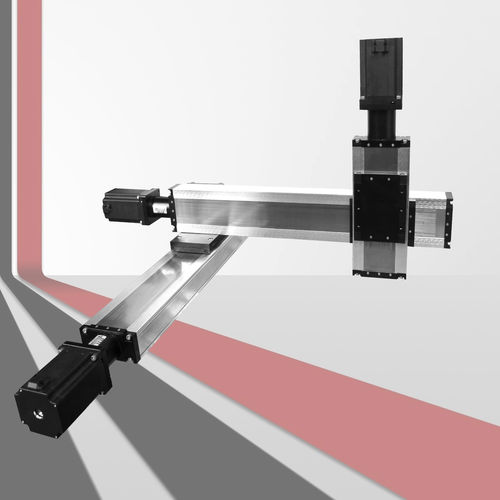

リニアポジショニングステージ FSL80XYZ-X

電動式2軸多軸

【Technical Feature】 FSL80 linear guide, fully sealed structure, body width 80mm, it is designed for dustproof usage in hard environment, avoid dust or miscellaneous debris fall into body structure to affect working, large stretch,small compression,hard object collision without deformation, oleic acid resistance, high temperature resistance, long service life. 【Range of Application】 It can be used in combination with single or multiple axes. It is easy to match the required workpieces in various industries and it becomes a simple and practical mechanical arm. It is mainly used in dust free workshops or special fields such as electronics and medical equipment, such as film, Discount, IC printing, CCD online testing, solder automation equipment. 【http://www.fuyumotion.com】 Certification: ISO, CE, FCC, RoHS Series: FSL80 Stroke Range: 100mm~1500mm Position Accuracy: 0.05mm Max Speed: 300mm/s Max Load: 60kg Ball Screw: G1610 To get professional service, we have some questions for you, please try to answer in your enquiry: 1.What machine do you use the stage on? 2.How long stroke do need the linear be? 3.How is the load and speed need? 4.Do need motor and accessory together? If need OEM or other special requirement, please tell us.
