タービンミキサー PTO

プロペラ

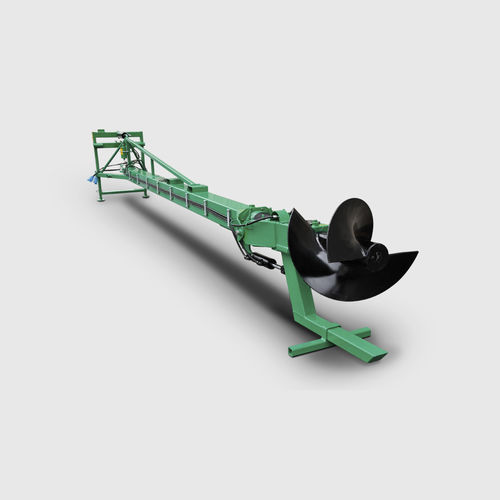

Agitation is achieved by the pushing motion of the Propeller; Fixed or articulated Propeller; 24" (610 mm) diameter Propeller; 24" (610 mm) or 32" (811 mm) Pitch depending on tractor horse-power; Knife on propeller to cut fibrous material; Heavy-duty driveline and #55 PTO – 540 RPM only; Easy access for maintenance of the driveline joint; Length of agitator is 27' (8,2 m). Typical Application To agitate manure stored in a concrete pit up to 16' (4,8 m) deep for dairy manure and up to 13' (4 m) deep for hog slurry. Articulated Propeller The Articulated PTO Agitator is available with a fixed propeller or with an up and down articulation. This articulation aims to create more turbulence and reduces agitation time. The 20° upward articulation allows you to break the crust from underneath. The 20° downward articulation forces the crust pieces towards the propeller and agitates sediments Driveline articulation in oil bath. Options 30° sideways articulation, to agitate a wider surface area. Adjustable heavy-duty 3-point hitch. Wheels and tow bar kit.
