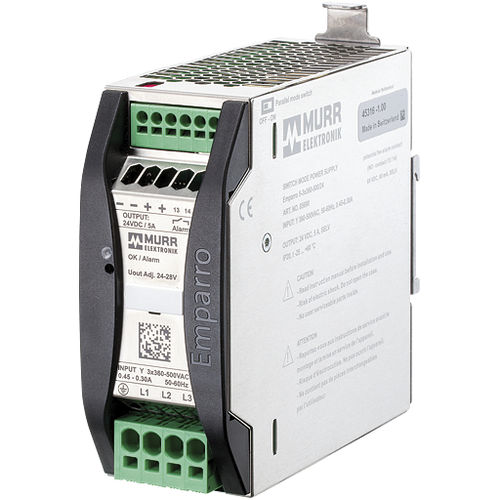

AC/DCパワーサプライ Emparro 3~ series

スイッチング三相DINレール

INPUT: 3× 324...572 V AC / 450...745 V DC OUTPUT: 24...28 V DC Current: 5 A GENERAL DATA Standards - IEC 61010-2-201, EN 61204-3, EN 55011 B, EN 61000-3-2, SEMI F47 Mounting method - DIN-rail mountable TH35 (EN 60715) Temperature range - -40...+70 °C, ...+70 °C derating (storage temperature -40...+85 °C) Relative humidity - 5...95%, no condensation Protection - IP20 Efficiency - 92.5% (3× 400 V AC); 91.8% (3× 480 V AC) Connection - Push-In spring clamp terminals Dimensions H×W×D - 143×50×143 mm OUTPUT Output voltage - 24 V DC (SELV), ±1%; 24...28 V adjustable Power Boost - Iout N × 150% (min. 5 s) LED display - LED (green): OK; LED (red): overload, overheating or short-circuit Output current - 3.7 A (70 °C); 5.0 A (60 °C); 6.0 A (45 °C) Mains failure bridging time - min. 25 ms (3× 360 V AC); 5 A (24 V DC) Ripple - max. 20 mV eff/rms Spikes - max. 50 mV ss/pp Unit protection - short-circuit and overload protected, permanently by 20% (to 45 °C) Parallel usage/serial usage - max. 3 units INPUT Input voltage - 3× 324...572 V AC/450...745 V DC Input current - 0.45 A (3× 360 V AC); 0.3 A (3×500 V AC) Inrush current after 1 ms - max. 9.5 A (3× 500 V AC) Power factor - 0.61 (3× 400 V AC) Frequency - 50...60 Hz Input fuse (internal) - 3× 6.3 A (T) Product article number of manufacturer - 85690
