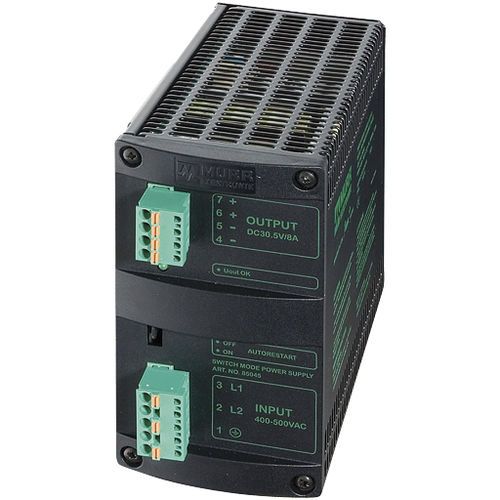

AC/DCパワーサプライ MCS series

二相単相三相

INPUT: 3× 360...550 V AC OUTPUT: 24...28 V DC Current: 10 A GENERAL DATA Standards - IEC 61010-2-201, EN 61204-3, EN 55022 B Mounting method - DIN-rail mountable TH35 (EN 60715) Temperature range - 0...+60 °C (storage temperature -25...+85 °C) Relative humidity - 5...95%, no condensation Efficiency - 90% Dimensions H×W×D - 127×68×198 mm OUTPUT Output voltage - 24 V DC (SELV), ±1%; 24...28 V adjustable LED display - LED (green) for output voltage Selectable switch-off mode - front sided plug link (automatic re-start or definite shut-off) Output current - 10 A (+60 °C); 12 A (+40 °C) Mains failure bridging time - min. 11 ms (500 V AC) Ripple - max. 20 mV eff/rms Spikes - max. 100 mV ss/pp Unit protection - short-circuit and overload protected Parallel usage/serial usage - max. 5 units/max. 2 units INPUT Input voltage - 3× 360...550 V AC Primary fusing external - max. 3× 2 A Input current - 3× 0.65 A Inrush current after 1 ms - max. 15 A Frequency - 50...60 Hz Product article number of manufacturer - 85071
