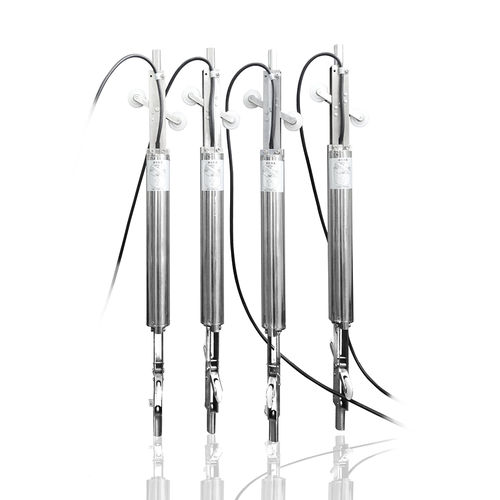

固定式傾斜計 ZCT-CX300

2軸RS-485Modbus

ZCT-CX300-S230 in-place inclinometer is a high- precision tilt sensing system developed by Shanghai Zhichuan(zc sensor). The product has a maximum measuring range of ± 30 degrees and supports the MODBUS RTU protocol. It is the best choice for geotechnical and structural monitoring. The sensor probe ZCT-CX300-TubeUnit of it has a maximum measuring range of ± 30 degrees. It is suitable for geological monitoring, construction, civil engineering, and other similar safety monitoring application. Product Features Modbus RTU protocol compliant Wide range, high accuracy, stable performance Solid, durable, maintenance-friendly Product Model ： - ZCT-CX300 Measuring Range ： - ±15 ° ( ±30 °) Output ： - RS485 Power： - Voltage(8～30V) Repeatability： - ±0.003° Accuracy ： - 0.001°-0.005° Application ： - Geo/Structural Monitoring IP Degree ： - IP68
