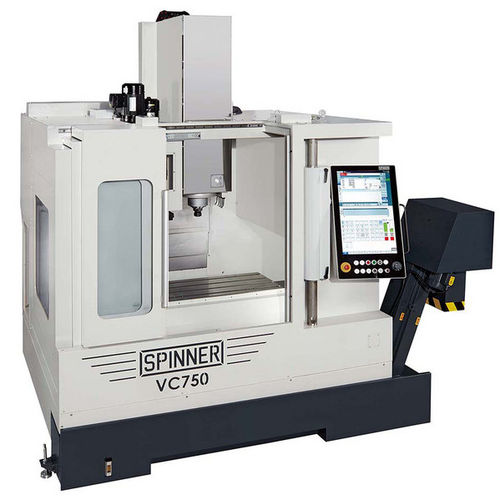

3軸マシニングセンタ VC series

縦型BT 40HSK-63

760 mm, 850 mm, 1,150 mm, 1,850 mm
(29.92 in, 33.46 in, 45.28 in, 72.83 in)

460 mm, 510 mm, 620 mm, 820 mm
(18.11 in, 20.08 in, 24.41 in, 32.28 in)

460 mm, 510 mm, 600 mm, 820 mm
(18.11 in, 20.08 in, 23.62 in, 32.28 in)

最少: 5,000 rpm
(31,416 rad.min-1)

最大: 24,000 rpm
(150,796 rad.min-1)

最少: 5.6 kW
(7.61 hp)

最大: 62 kW
(84.3 hp)

3,800 kg, 4,500 kg, 8,300 kg, 14,500 kg
(8,377.57 lb, 9,920.8 lb, 18,298.37 lb, 31,967.03 lb)

1,850 mm, 2,590 mm, 2,650 mm, 3,350 mm
(72.8 in, 102 in, 104.3 in, 131.9 in)

1,700 mm, 1,800 mm, 2,270 mm, 2,750 mm
(66.9 in, 70.9 in, 89.4 in, 108.3 in)

2,420 mm, 2,700 mm, 2,825 mm, 3,150 mm
(95.3 in, 106.3 in, 111.2 in, 124 in)
