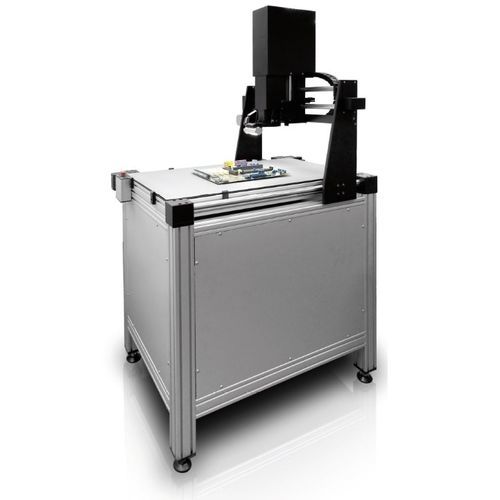

Electronic inspection system AutoInspect HD
visualfor PCBcomputer-controlled

electronic inspection system
electronic inspection system
Add to favorites
Compare this product


Characteristics

Technology
electronic
Type
visual
Applications
for PCB
Other characteristics
computer-controlled

Description

AutoInspect HD: Semi-automatic inspection device for small batches Through the connection of the proven HD-Inspektor and components of our motorized positioning table-modular system, a new PC-controlled semi-automatic inspection device is created. It disposed a flexible inspection area and can be used versatile. Applications: inspection tasks in single and serial production monitoring in the electronic industry and at the production of printed circuit boards quality control and documentation tasks possible follow-up inspections of AOI-controls Advantages: Full-HD 1080 (1920 x 1080 pixels) super quick autofocus system 30x optical zoom, 2x digital zoom ring light and sloping light with COB-LED technology for optimal illumination device control by user interface and three-axle-joystick laser pointer to find the inspection location discussion of the live pictures in the team guided visual inspection of serial products reduction of the time requirement at quality control and documentation tasks System software JE.Doku M: control computer with Intel i3® processor, Full-HD-Framegrabber user-interface for control with 27” TFT-monitor guided visual inspection of serial products (positions will be approached automatically) check against master image sequence generation by intuitive teach-in mode image editing, image caption, creation of a picture database
