Stretch blow molding machine 4XLs
for PETfor PET bottles4-cavity

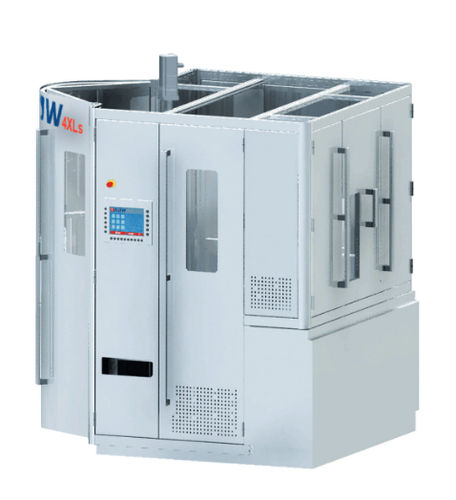

Stretch blow molding machine - 4XLs - 1 BLOW - for PET / for PET bottles / 4-cavity

Stretch blow molding machine - 4XLs - 1 BLOW - for PET / for PET bottles / 4-cavity - image - 2

Stretch blow molding machine - 4XLs - 1 BLOW - for PET / for PET bottles / 4-cavity - image - 3

Stretch blow molding machine - 4XLs - 1 BLOW - for PET / for PET bottles / 4-cavity - image - 4

Stretch blow molding machine - 4XLs - 1 BLOW - for PET / for PET bottles / 4-cavity - image - 5

Stretch blow molding machine - 4XLs - 1 BLOW - for PET / for PET bottles / 4-cavity - image - 6

Add to favorites

Compare this product

Characteristics

Type

stretch

Treated material

for PET

Finished product

for PET bottles

Other characteristics

4-cavity

Hollow part volume

Min.: 0 l
(0 gal)

Max.: 4 l
(1.1 gal)

Description

Based on multiple years of experience in the PET sector, 1 BLOW developed a complete range of PET blow-moulding machines from 1000 up to 9000 bottles per hour. Whatever the type of bottles you would like to produce : round, square, oval, asymmetrical, for Hot Filling, with neck orientation (using standard preforms), 1 BLOW has the technical answer to your specific need. This 4-cavity machine produces bottles up to 4 litres. Options : 4XXLN : With neck orientation. 40 bar air pressure adjustable Air 40 bar (1.5 L) 450 NnrrVh Air 40 bar (4 L) 700 Nm3/h Pre-blowing 1-15 bar Dew point +3°C 8 bar recovered from 40 bar blowing Installed power 90 kW Voltage 3x400 V + Gr Power consumption depending on preform / bottle Water flow 3 m3/h Cooling water 3 bar
