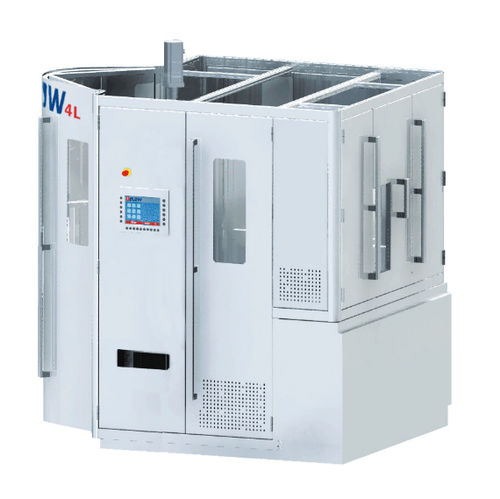

Stretch blow molding machine 4LO
for PETfor PET bottles4-cavity

Stretch blow molding machine - 4LO - 1 BLOW - for PET / for PET bottles / 4-cavity

Stretch blow molding machine - 4LO - 1 BLOW - for PET / for PET bottles / 4-cavity - image - 2

Stretch blow molding machine - 4LO - 1 BLOW - for PET / for PET bottles / 4-cavity - image - 3

Stretch blow molding machine - 4LO - 1 BLOW - for PET / for PET bottles / 4-cavity - image - 4

Stretch blow molding machine - 4LO - 1 BLOW - for PET / for PET bottles / 4-cavity - image - 5

Stretch blow molding machine - 4LO - 1 BLOW - for PET / for PET bottles / 4-cavity - image - 6

Add to favorites

Compare this product

Characteristics

Type

stretch

Treated material

for PET

Finished product

for PET bottles

Other characteristics

4-cavity

Hollow part volume

Max.: 2.5 l
(0.7 gal)

Min.: 0 l
(0 gal)

Description

Based on multiple years of experience in the PET sector, 1 BLOW developed a complete range of PET blow-moulding machines from 1000 up to 9000 bottles per hour. Whatever the type of bottles you would like to produce : round, square, oval, asymmetrical, for Hot Filling, with neck orientation (using standard preforms), 1 BLOW has the technical answer to your specific need. This 4-cavity machine produces bottles up to 2,5 litres. Options : 4LO : Oval bottles. 4LOHF : Hot Fill bottles. 4LON : With neck orientation. 40 Bar pressure adjustable Air 40 bar (1.5 L) 520 NrrïVh Pre-blowing 1-15 Bar Dew point +3°c 8 Bar recovered from 40 Bar blowing Installed power 90 Kw Voltage 3x400v + Gr Power consumption depending on preform / Bottle Water flow 4 m3/h Cooling water 3 Bar
