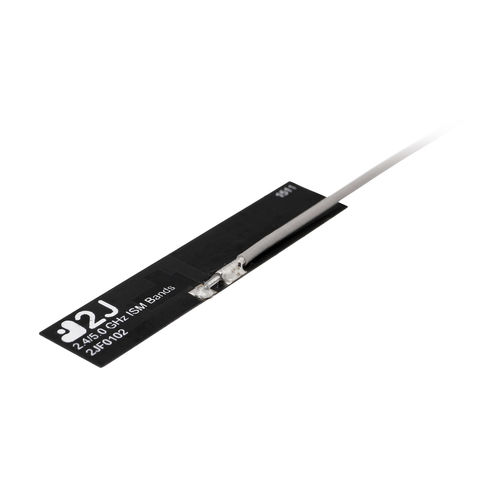

WiFi antenna 2JF0102P2.4/5 GHzISM bandinternal
Add to favorites
Compare this product
Characteristics
- Network
- WiFi, 2.4/5 GHz, ISM band
- Type
- internal, PCB
- Other characteristics
- high-performance, linear polarized
- Frequency
Max.: 5,925 Hz
Min.: 2,410 Hz
- Gain
2.2 dB, 3.8 dB
Description
Mounting - Adhesive Mount Flexible
Dimensions (mm) - 39.6x 8.4 x 0.1
Operating temperature - -40 °C to +85 °C
Note - Flexi Embedded Antenna
Standards - WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency - 2410-2490, 4920-5925, 5925-7125
VSWR - ~1.2:1, ~1.4:1, ~2.1:1
Efficiency (%) - ~76, ~82, ~60.4
Peak Gain (dBi) - ~2.2, ~3.8, ~3.2
Impedance (Ohm) - 50
Polarisation - Linear
Max. Input Power (W) - 25
