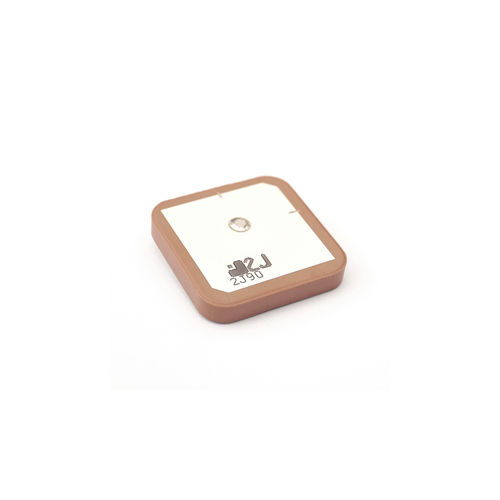

Iridium antenna 2JCP2542601a

patchPCBinternal

The Next Generation of Global Satellite Communication The Iridium Low-Profile Ceramic Patch Thru-Hole Mount Antenna (2JCP2542601a) is bringing the next generation of global communication within Iridium standards. With hemispherical radiation pattern, the 2JCP2542601a offers exceptional connectivity in 1616MHz-1627MHz frequencies. The 2JCP2542601a offers the most reliable global connectivity on the market including poles, oceans, and airways. With a peak gain of ~5.1 dBi and ~82.3% efficiency, the 2JCP2542601a is the ideal solution for worldwide satellite voice and data communication in commercial, residential, emergency and transportation markets. This antenna is right hand circularly polarized (RHCP) rejecting multi-path interference and optimizing signal strength. The 2JCP2542601a is an economical solution, making it suitable for high volume and mass production of satellite communication devices. Suggested Applications - Commercial/ Residential - Emergency Communications - Voice & Data Satellite Communications - Transportation - Satellite-based telecommunications The antenna reaches its maximum gain when is placed in the center of the PCB and when it faces the sky – which is critical for high-performance applications. The high-quality ceramic housing offers the 2JCP2542601a durability and protection in extreme environments withstanding temperatures between -40C and +80C. With low-profile dimensions (25 x 25 x 4 mm) and ground plane independence, this compact thru-hole mount antenna is easy to install in space-restricted areas. This item is manufactured within RoHS compliance and a complete Iridium certification.
