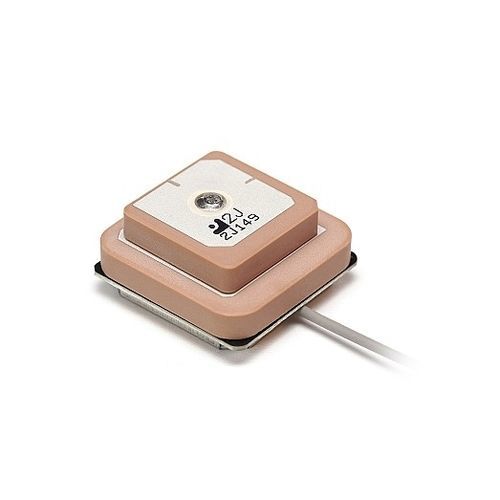

GNSS antenna 2JM3201C5F

GPSGLONASSGALILEO

The multi-GNSS GPS L1/L2/L5 stacked ceramic patch antenna measures only 25x25x12 mm and is the most compact on the market. Designed for high precision and autonomous multi-frequency applications in mind, this antenna provides reliability, greater bandwidth, and high gain thanks to the integration of L1, L2, L5 bands. 2JM3201C5F offers concurrent reception on GNSS that cater to GPS, GLONASS, Galileo, IRNSS, and SBAS navigational technologies. The L5 band is the most advanced GNSS signal on the market and gives military-grade GPS accuracy to users worldwide while enabling the usage of dead reckoning process. By combining Precise Point Positioning (PPP) of L1, L2 and L5 with the Indian Regional Navigation Satellite System (IRNSS), this antenna is the #1 choice for GIS surveying where high precision operations are needed. Typical applications include: Aviation Safety Safety-Critical Systems & Transportation Autonomous Vehicles Agriculture Navigation This antenna works on single feed technology. With low power consumption and a wide voltage range, 2JM3201C5F is a perfect choice for multiple applications. It has high efficiency within 1561-1606 MHz (L1), 1227 MHz (L2), and 1176 MHz (L5) frequencies with a 28dB GNSS active gain. It gives strong anti-interference performance due to low noise figures. It has a high rejection pre-filter due to which it effectively avoids disconnection when receivers are operated under complex electromagnetic environments such as communication base station applications or urban areas.
