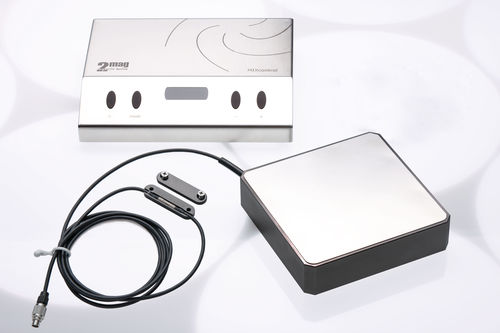

Magnetic laboratory stirrer steriMIXdrive

analogfor beakersfor autoclaves

Ultra flat, compact and strong 2mag magnetic stirrer with fully automatic stirring bar monitoring mixWATCH, up to 40 litres stirring volume, suitable for use in autoclaves. Very strong magnetic coupling by SmCo-magnets, therefore predestined for magnetic power transmission over wide distances or for thick vessel bottoms. Maintenance-free 2mag-motor-drive with large speed range from 100 up to 1,200 rpm. Fully encapsulated, pressure- and vacuum resistant stainless steel housing, IP68, temperature resistant up to +150°C, extremely robust construction and performance, easy to clean and firm. easyMOUNT plug coupling for quick installation of the stirrer cable through a pressure and steam tight grommet into a steam sterilizer. 2mag mixWATCH - Stirring bar monitoring with fully automatic trim of the maximum reachable speed for a reliable and unattended operation of the stirrer. An absolutely innovation is the integrated contact-free stirring bar control mixWATCH. In case of the magnetic coupling is separated between the magnetic stirrer and the stirring bar during the acceleration phase e.g. caused by to high set speed or changing viscosities, the magnetic stirrer will be stopped, the stirring bar centred and started again. mixWATCH is ensuring a very high process safety, e.g. with using of closed non-glass vessels or at unattended overnight operation. steriMIXdrive with steriMIXcontrol is equipped as standard with mixWATCH. • Steam-, pressure- and vakuum resistant • For temperatures up to 1500C • Up to 40 litres stirring volume • Footprint 14 x 14 cm • mixWATCH stirring bar monitoring
