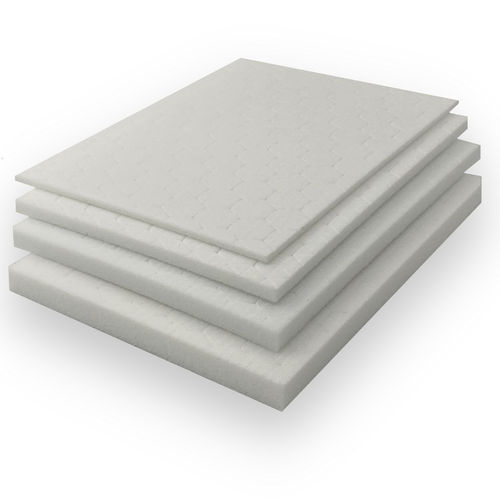

PET foam for composites core material 3D|CORE™ PET FR

fire-resistanthigh-temperature foam for compositesfor composites

The 3D|CORE™ PET FR is a closed-cell, thermoplastic and recyclable high-performance rigid foam with basic FST properties (flame, smoke, toxicity). It is suitable for applications to fulfil high fire protection requirements to protect passengers and staff in a fire situation and to evacuate and rescue them. The integrated honeycomb structure creates more flexibility and simplifies handling in production. Properties of 3D|CORE™ PET FR: - Available density: 95 kg/m³ Very good fire retardancy (DIN 5510; NF F16-101; FAR 25.853; EN 13823; EN 45545-2; IMO 2010 FTP Code Part 5) - Excellent fatigue resistance - Excellent long-term thermal stability up to 100°C - Very high processing temperature up to 180°C - Closed-cell foam (no water absorption, no reexpansion, no outgassing) - Long lasting - no rotting - Easy processing with all known resin systems and processes - Very high chemical resistance - Homogenous connection of all components - Excellent surface adhesion (connection between the surfaces and core) - Highly consistent material properties - Good thermal insulation - Integrated flowing aid - Low resin absorption Areas of application for 3D|CORE™ PET FR: - Automotive: underbody panelling, bonnet, seats, battery housing, side elements, roof, trunk, spoiler - Railway & Transport: ceiling elements, interior trim, flooring, door modules, partition walls, roof, underbody panelling, front mask, seats - Wind energy: rotor blades, nacelles, spinner - Industry: Machine housing Suitable processes: - Hand laminate - Vacuum infusion - RTM - Resin Transfer Moulding (VARTM, LRTM and HP-RTM) - Wet pressing - Autoclave - Prepreg - SMC
