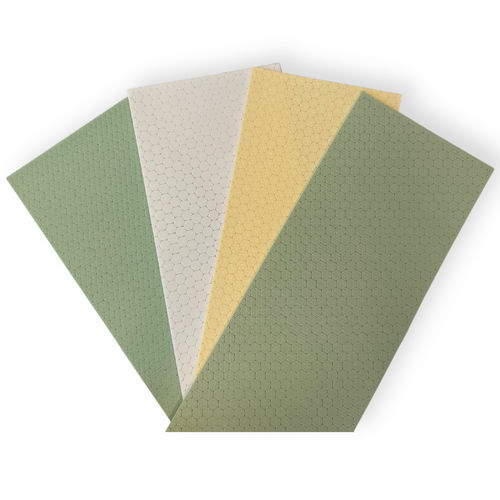

Sheet core material 3D|CORE™ SHEETS

foam for compositesfor sandwich panels

3D|CORE™ SHEETS are the ideal basis for lightweight, durable and highly compressive sandwich constructions. The core is formed by our high-performance foam cores. With the help of the reinforcement structures HX, RB and DT, the mechanical properties of the composite component can be optimized. Whether plane or curved components, 3D|CORE™ SHEETS are suitable for almost any shape. Advantages in the production process: Shortened production time: Due to the high flexibility and easy handling, the SHEETS can be quickly inserted into a mould. Ideal impregnation: The already integrated flow aid guarantees optimal filling of the component with a synthetic resin. Production reliability: the integrated flow aid prevents an exothermic reaction within the component, as there is no massive resin build-up. Material savings: No further flow aid is required. This saves you the cost of the flow aid as well as the cost of the additional resin. Areas of application for 3D|CORE™ SHEETS: - Automotive: underbody panelling, bonnet, seats, battery housing, side elements, trunk, spoiler - Railway & Transport: ceiling elements, interior, flooring, door modules, partition walls, roof, underbody panelling, front mask, seats - Winding applications: Tubes, tanks, sleeves, rollers - Wind energy: rotor blades, nacelles, spinner - Industry: machine housing
