Digital inspection system DMP

3Dautomatedsurface

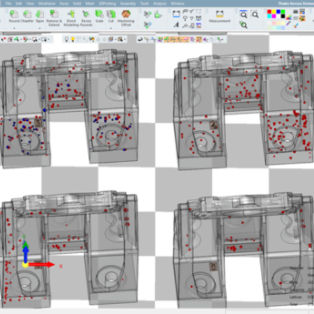

MINIMIZE SECONDARY INSPECTION IN METAL AM WITH VALIDATED AUTOMATED ANALYSIS Industry First: Proven Correlation with CT Scan Results Our team of material and process scientists and engineers developed algorithms that show a high level of correlation with the results from CT Scans, allowing an automated, post-build detection of incidents. In a study a 100% correlation of DMP Inspection analysis results with lack of fusion (LoF) found in CT scan data for defects > 200 μm was verified for a representative test variety of parts in LaserForm Ti Gr23 (A) and Maraging Steel (A) printed on DMP 320 metal 3D printer. Automated Algorithms Detect Defects and Areas of Interest Benefit from the AM manufacturing expertise of our engineers with automated algorithms that detect: • - Lack of fusion (available in beta release) • - Warpage (available in beta release) • - Down-facing surface roughness • - Recoating quality Shorten Validation Time IDENTIFY Incidents of lack of fusion and warpage ANALYZE Complete root cause analysis with 3D visualization of areas of interest over the digital model and printing parameters RESOLVE Easily take corrective action
