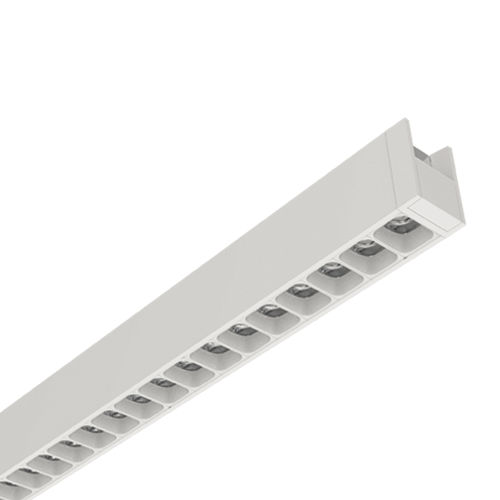

Ceiling-mounted lighting 3F HD 50

LEDpolycarbonate

Average luminance 45°. Average luminance 65°. Environments with very exacting visual tasks and control of luminance at angles of >45° compared to the LEED certification. Offices with video terminals and administrative, information and school offices. Transparent methacrylate (PMMA) lenses with different facets to optimise the direction of the luminous flux. Anti‑reflective white polycarbonate alveolar optic. ILLUMINOTECHNICAL Direct symmetric distribution. Lifetime (L80/B10): 100000 h. (tq+25°C) Photobiological safety RG0. SOURCE Linear LED modules. Colour initial tolerance (MacAdam): SDCM 3. MECHANICAL Extruded aluminium housing. Removable gear‑tray. Lighting head caps with specular aluminium frieze. ELECTRICAL In compliance with EN 60598‑1. Compliance with the EN 60598‑2‑22 standard for power supply from a centralised CPSS emergency system must be verified in the technical data sheets of each individual device on our website. Entrance to the upper power supply in proximity to a power head. Branching via an irreversible quick coupling plug to connect the cable housing element to the socket.
