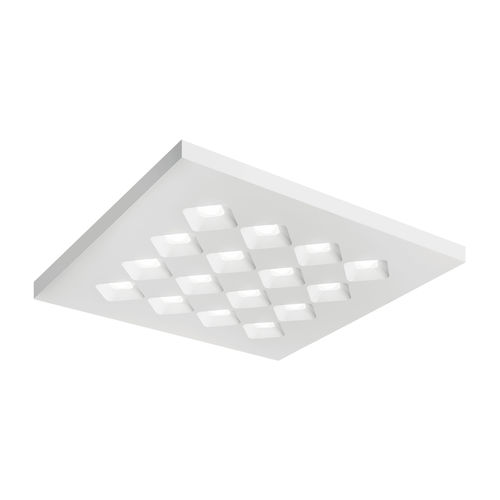

Light fixture 3F Dìagon P Soft UGR

LEDpolycarbonatesmart

Installation Interdistance Transv.D = 1.20 x hu ‑ Long.D = 1.20 x hu. Direct symmetric distribution. Average luminance 65°. Colour temperature available /830 ‑ /840, /930 ‑ /940. Lifetime (L75/B10): 100000 h. (tq+25°C) Photobiological safety RG0. SOURCE Squared LED modules. Colour initial tolerance (MacAdam): SDCM 3. MECHANICAL White painted frame. Height only 40 mm. Housing in hot‑galvanised steel, painted in white polyester. Honeycombed diagonal screen in white anti‑glare polycarbonate. Opal methacrylate (PMMA) rhomboid lenses with differentiated, engraved and prismatic surfaces for diffused, soft lighting and excellent visual comfort. ELECTRICAL In compliance with EN 60598‑1. Compliance with the EN 60598‑2‑22 standard for power supply from a centralised CPSS emergency system must be verified in the technical data sheets of each individual device on our website. The luminaires with EP permanent emergency wiring on board comply with EN 60598‑2‑22 standard, high risk areas excluded. Quick connection. INSTALLATION Ceiling installation. APPLICATIONS Environments: staterooms, with VDTs, offices. Environments with exacting visual tasks, where diffused soft light for optimum visual comfort is required. LIGHT MANAGEMENT The DALI products can be controlled with 3F Easy Dim or 3F Smart Dimming technology.
