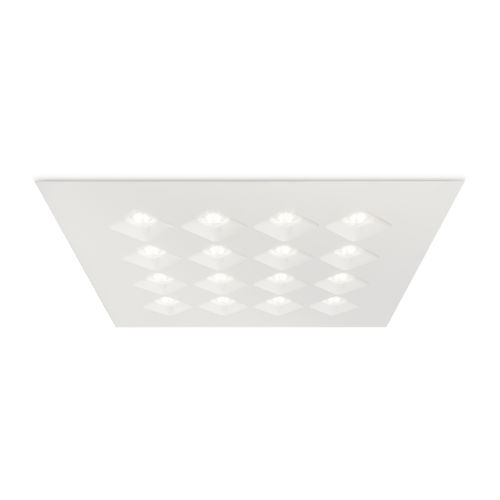

LED panel light 3F Dìagon

Average luminance 65°. 39W ‑ Average luminance 65°. Installation Interdistance Transv.D = 1.40 x hu ‑ Long.D = 1.40 x hu. Rhomboidal lenses with differentiated surfaces, etched and prismatic to optimise the orientation of the luminous flux, in transparent methacrylate (PMMA). Direct symmetric distribution. Colour temperature available /830 ‑ /840, /930 ‑ /940. Lifetime (L75/B10): 100000 h. (tq+25°C) Photobiological safety RG0. SOURCE Squared LED modules. Colour initial tolerance (MacAdam): SDCM 3. MECHANICAL Housing in hot‑galvanised steel, painted in white polyester. Honeycombed diagonal screen in white anti‑glare polycarbonate. Height only 30 mm. Installation in false ceilings with exposed structure. The 621x621 version is dedicated to false ceilings that have modular dimensions of 625x625. ELECTRICAL In compliance with EN 60598‑1. Compliance with the EN 60598‑2‑22 standard for power supply from a centralised CPSS emergency system must be verified in the technical data sheets of each individual device on our website. The luminaires with EP permanent emergency wiring on board comply with EN 60598‑2‑22 standard, high risk areas excluded. Quick connection. INSTALLATION Lay‑in installation. APPLICATIONS Environments where soft diffuse light is required for optimal visual comfort and total shielding of the source. Representative environments, with video terminals, offices, meeting rooms, transit areas, reception and waiting rooms. LIGHT MANAGEMENT The DALI products can be controlled with 3F Easy Dim or 3F Smart Dimming technology.
