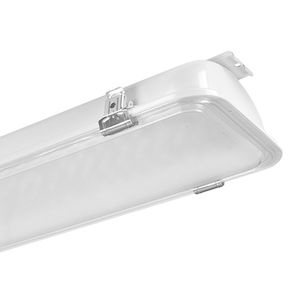

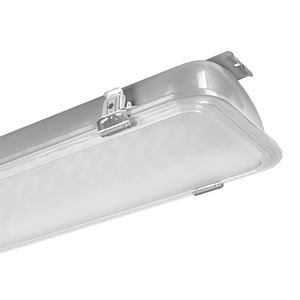

Safety lighting Beta 500 SP

LEDindustrialcorrosion-resistant

Medium distribution. SP transparent methacrylate (PMMA) diffuser, prismatic outside, antiglare. Direct symmetric distribution. Lifetime (L80/B10): 100000 h. (tq+25°C) Photobiological safety RG0. SOURCE Linear LED modules. Colour initial tolerance (MacAdam): SDCM 3. MECHANICAL Housing in white painted epoxy‑polyester powder aluminium. White aluminium non‑iridescent high efficiency. Perimetrical frame in stainless steel with vandal‑proof opening and stainless steel nuts and bolts. Polyurethane foam seal, ecological, anti‑aging, installed using a continuous automatic process with no joints. Fixing bracket in stainless steel. ELECTRICAL In compliance with EN 60598‑1. Compliance with the EN 60598‑2‑22 standard for power supply from a centralised CPSS emergency system must be verified in the technical data sheets of each individual device on our website. Quick connection in polycarbonate with M20x1,5 cable gland, to access the terminal block positioned on a removable runner. ON/OFF electronic wiring: twin‑circuit for 200W and 300W versions. INSTALLATION Ceiling mounted, suspension or busway installation. APPLICATIONS Ambient temperature from ‑20°C to +45°C. Commercial and industrial environments and warehouses. Suitable product for food production plants (HACCP), IFS (Food Version 6), BRC (GSFS Food Version 7). LIGHT MANAGEMENT The DALI products can be controlled with 3F Easy Dim or 3F Smart Dimming technology. NOTES HST glass HST glass is composed of a tempered glass sheet which has undergone a thermal stabilisation process (Heat Soak Test) which reduces the risk of spontaneous breakage caused by nickel‑sulfide inclusions inside the glass.
