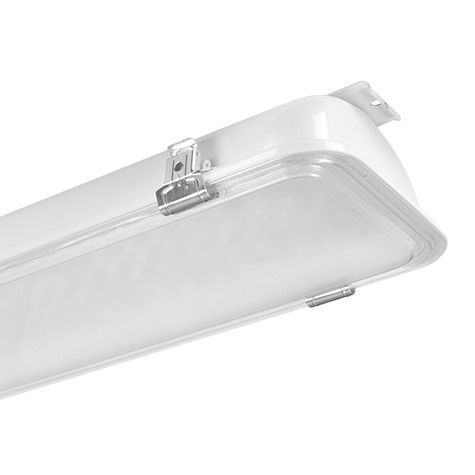

Safety lighting Beta 235 75 PC Lite

LEDUVindustrial

Symmetric distribution. Polycarbonate screen etched internally, V2 self‑extinguishing, UV stabilised, injection moulded. Attention: the diffuser supplied with our L1265 long luminaires is higher than the one which is supplied with our L1565 long versions. L1565: mechanical strength to impacts IK09 (10 joule). Symmetric distribution. Lifetime (L80/B10): 100000 h. (tq+25°C) Photobiological safety RG0. SOURCE LED modules. Colour initial tolerance (MacAdam): SDCM 3. MECHANICAL Single‑piece housing in pressed steel, powder‑coated in white epoxy‑polyester. Ecologic anti‑aging injected sealing gasket. Highly reflective white polyester painted, hot‑dip galvanised steel, oversized cable housing reflector, fixed to the body with screws. Galvanised steel snap‑lock clips for attaching screens (safety n° 4 per fixture). ELECTRICAL Compliance with the EN 60598‑2‑22 standard for power supply from a centralised CPSS emergency system must be verified in the technical data sheets of each individual device on our website. Quick connection in polycarbonate with M20x1,5 cable gland, to access the terminal block positioned on a removable runner. INSTALLATION Ceiling, suspended, on busbar or wall‑mounted. For mounting hooks and brackets see accessories. APPLICATIONS Ambient temperature from ‑20°C to +45°C. Dry, dusty indoor environments, subject to occasional water splashes. Industrial environments, warehouses, environments requiring safety luminaires, such as prisons, thanks to the clips that can be locked by bolts (on request).
