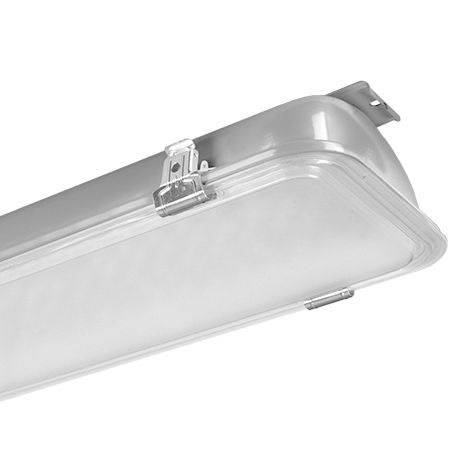

Safety lighting Beta 235 92

LEDUVpolycarbonate

Symmetric distribution. Polycarbonate screen etched internally, V2 self‑extinguishing, UV stabilised, injection moulded. Attention: the diffuser supplied with our L1265 long luminaires is higher than the one which is supplied with our L1565 long versions. L1565: mechanical strength to impacts IK09 (10 joule). Symmetric distribution. Lifetime (L80/B10): 100000 h. (tq+25°C) Photobiological safety RG0. SOURCE LED modules. Colour initial tolerance (MacAdam): SDCM 3. MECHANICAL Housing in AISI 304 stainless steel, pressed in one single piece. Oversized gear‑tray reflector unit in highly reflective white painted hot‑galvanised steel. Stainless steel snap‑lock clips for attaching screens (safety n° 4 per fixture). ELECTRICAL In compliance with EN 60598‑1. Compliance with the EN 60598‑2‑22 standard for power supply from a centralised CPSS emergency system must be verified in the technical data sheets of each individual device on our website. Quick connection in polycarbonate with M20x1,5 cable gland, to access the terminal block positioned on a removable runner. INSTALLATION Ceiling, suspended, on busbar or wall‑mounted. For mounting hooks and brackets see accessories. APPLICATIONS Ambient temperature from ‑20°C to +45°C. Dry, dusty indoor environments, subject to occasional water splashes. Any environments except the ones where the luminaire materials are unsuitable. Environments requiring safety luminaires, such as prisons, thanks to the clips that can be locked by bolts (on request).
