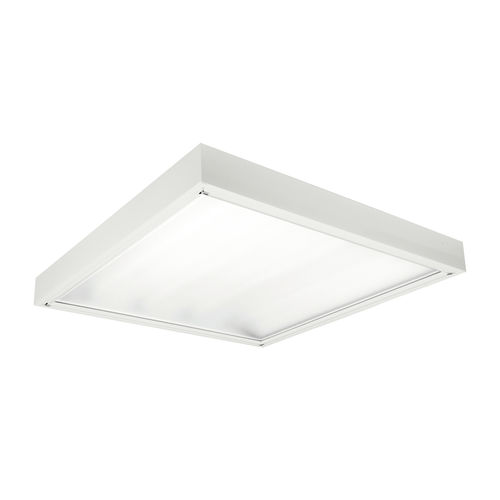

Light fixture P 200

LEDIP54polycarbonate

3x ‑ Average luminance 65°. 4x ‑ Average luminance 65°. VS moulded glass, anti‑glare, tempered, non‑combustible, thickness 4 mm, locked to the white painted aluminium perimetrical frame, sealing gasket, hinged opening. Direct symmetric distribution. Lifetime (L80/B10): 100000 h. (tq+25°C) Photobiological safety RG0. SOURCE Linear LED modules. 10W version Colour initial tolerance (MacAdam): SDCM 2. 24W version Colour initial tolerance (MacAdam): SDCM 3. MECHANICAL Housing in galvannealed steel, painted in white epoxy‑polyester. ELECTRICAL In compliance with EN 60598‑1. Compliance with the EN 60598‑2‑22 standard for power supply from a centralised CPSS emergency system must be verified in the technical data sheets of each individual device on our website. INSTALLATION Ceiling mounted installation. APPLICATIONS Environments: sterilized, aseptic. Particularly suitable for environments where protection against water and dust is required, such as hospitals, pharmaceutical and chemical laboratories. In environments with foodstuffs or machines with moving parts, with considerable sudden temperature changes, and in general in any environments requiring total protection against falling fragments, use the P 200 LED IP54 SP PC version (polycarbonate diffuser) available on request. Tempered glass is not immune to falling fragments from harmless and caused by shocks or exceptionally derived from the tempering process. SP version Suitable product for food production plants (HACCP), IFS (Food Version 6), BRC (GSFS Food Version 7).
