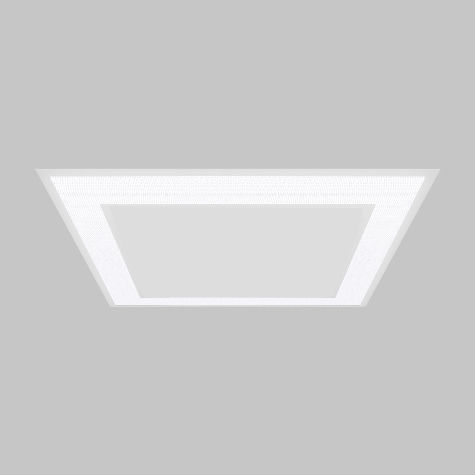

LED panel light 3F Eldorado

Controlled symmetric distribution. Average luminance 65°. Lifetime (L80/B10): 100000 h. (tq+25°C) Photobiological safety RG0. SOURCE Linear LED modules. Colour initial tolerance (MacAdam): SDCM 3. MECHANICAL Housing in hot‑galvanised steel, painted in white polyester. LGS micro‑prismatic flat diffuser in transparent methacrylate (PMMA), multi‑lenticular exterior, anti‑glare. Anti‑glare opal polycarbonate filter for brightness uniformity. Central part in hot‑galvanised steel, painted in white polyester. The 621x621 version is dedicated to false ceilings that have modular dimensions of 625x625. ELECTRICAL In compliance with EN 60598‑1. Compliance with the EN 60598‑2‑22 standard for power supply from a centralised CPSS emergency system must be verified in the technical data sheets of each individual device on our website. INSTALLATION Lay‑in installation. APPLICATIONS Any environment in which flexibility of lighting and customisation is required, capable of integrating perfectly into the areas and furnishings of different workspaces. Environments: with VDTs, meeting rooms, offices. Environments: architectural, commercial, staterooms, banks. Environments where dynamic, soft and diffuse light is required for optimal visual comfort. LIGHT MANAGEMENT The DALI products can be controlled with 3F Easy Dim or 3F Smart Dimming technology.
