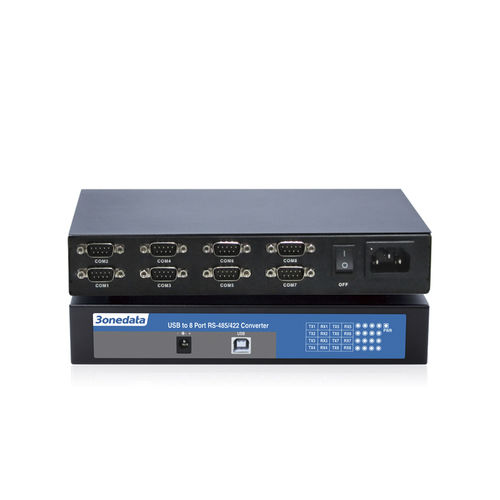

USB8485I
USB to 8 RS-485/422 Isolated Interface Converter
-Supports bilateral switching of data between 1 USB interface and 8 RS-485/422 serial ports
-Low CPU utilization during usage, stable performance
-Autotunning of serial port signal rate, baud rate of serial port 300bps~115200bps
-Serial port supports 15kV electrostatic protection, 2kVAC isolation protection
-Supports 9VDC power supply input
-Supports -40~75℃ wide temperature operation
The product provides matched driver program software; USB interface connected to PC will make up a serial COM port in the computer system. PC host can simultaneously communicate with RS-485/422 serial devices via virtual COM port.
Hardware adopts fanless, low power consumption, wide temperature design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC.
It can be widely used in PLC, Industrial Automatic Control, IC Card Toll Collection System, and Data Acquisition Control System, etc.
