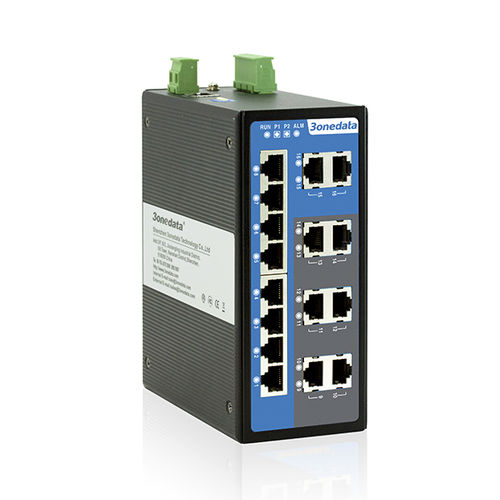

16 ports network switch IES6116 Series

managedDIN rail mountedredundant

IES6116 Series 16-port 100M Layer 2 Managed Industrial Ethernet Switch -Support 8 100M copper ports, 8 100M optional fiber or copper Ethernet ports -Adopt SW-Ring patent technology, support single ring, coupling ring, chain ring, Dual-homing ring network function, automatic recovery time of network failure < 20ms -Support dual power supply input, input voltage: 12~48VDC -Support -40~75℃ wide operating temperature range Power supply input is two independent power supply circuits, which can ensure the device normal operation when one of the power supplies breaks down. DIP switch can restore factory defaults. When power supply or port link failure occurs, ALARM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, rail transit, smart city, safety city, new energy, aerospace, intelligent manufacturing, military project and other industrial fields.
