Communications converter MC201

fiber opticsCANfor automatic controls

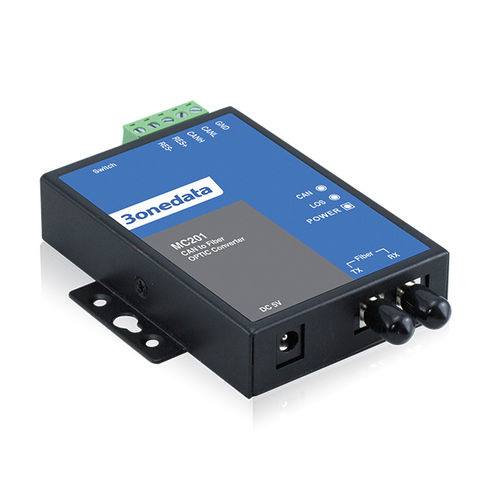

MC201-F 1 CAN to Fiber MODEM -Support 1 CAN port to 1 fiber port -CAN port supports two options for choosing baud rate, automatic detection and user definition. The range of baud rate is 2.5kbps-1000kbps -Data receiving/storing/forwarding could be achieved between 2 CAN networks with different rates when used in pairs -It can extend CAN bus transmission distance, the transmission distance of fiber port can reach up to 15km -Support -40～75℃ wide operating temperature range DIP switch could implement baud rate setting of CAN port. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in PLC control and management, building automation, healthcare automation system, measuring instrument and environment monitoring system, etc.
