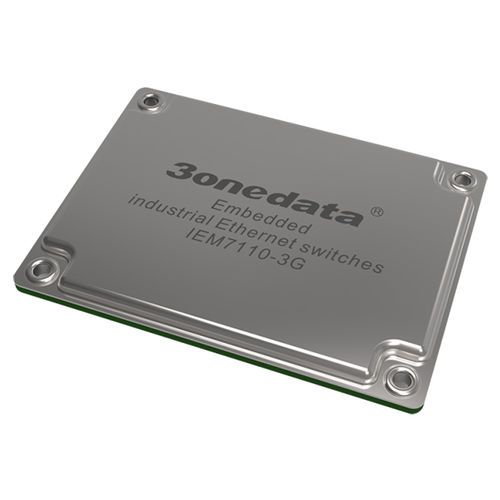

Managed Ethernet switch module IEM7110-3G

10 portsfiber opticsembedded

IEM7110-3G 10-port 100M/Gigabit Layer 2 Managed Industrial Ethernet Switch Module -Support 3 gigabit fiber/copper ports and 7 100M fiber/copper ports -Adopt SW-Ring patent technology, support single ring, coupling ring, chain ring, Dual-homing ring network function, automatic recovery time of network failure < 20ms -Input voltage: 3.3VDC -Support -40～75℃ wide operating temperature range Network management system supports various network protocols and industrial standards, such as STP/RSTP, 802.1Q VLAN, QoS, IGMP Static Multicast, Port Trunking, Port Mirroring, etc. It also possesses complete management functions, including Port Configuration, Port Statistics, Access Control, Network Diagnosis, Rapid Configuration, Online Upgrading and so on. CLI, WEB, Telnet, SNMP and other access methods are also supported. The network management system can provide users with good experience with friendly design of network management system interface, simple and convenient operation. Hardware adopts fanless, low power consumption, wide temperature design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, railway transportation, smart city, safe city, new energy, aerospace, intelligent manufacturing, military project and other industrial fields.
