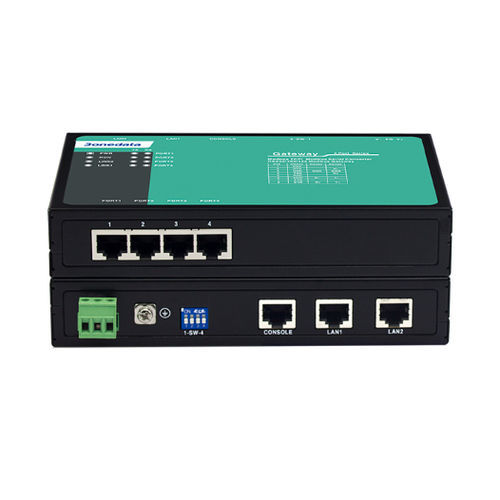

4 ports gateway GW1114-4DI(3IN1)-RJ-P(12-48VDC)

industrialIoTRS-485

GW1114-4DI(3IN1) 4-port RS-232/485/422 to Ethernet Modbus Gateway - Support 4 3IN1 RJ45 serial ports and 1 10/100Base-T(X) self-adaptive Ethernet interface - conversion between Modbus RTU/ASCII and Modbus TCP protocol - RTU Master, RTU Slave, ASCII Master, ASCII Slave and other operating modes - virtual and real ID mapping to achieve flexible access between Master and Slave devices - network modes such as redundant mode, switching mode and dual IP mode to meet the needs of various network environments - Support 12~48VDC power supply input - Support -40~75℃ wide operating temperature range Overview GW1114-4DI(3IN1)-RJ-P(12-48VDC) is Modbus gateway designed for integrating Modbus RTU/ASCII and Modbus TCP networks; they can achieve the conversion between Modbus RTU/ASCII and Modbus TCP protocols. This product supports 4 3IN1 RJ45 serial ports and 2 100M Ethernet copper ports. It adopts wall mounting or desktop mounting to meet the requirements of different application scenes. Modbus gateway supports multiple network protocols, such as Modbus, TCP, IP, UDP, TELNET, ARP, ICMP, HTTP, HTTPS, SNMP, SSH，SMTP, SNTP，DNS and DHCP protocols. It possesses complete management function, and supports access control, rapid configuration, online upgrading, etc. RTU Master, RTU Slave, ASCII Master, ASCII Slave and other operating modes are supported; it supports up to 256 Modbus TCP client (master) accesses and connects up to 128 Modbus TCP server (slave) devices. TELNET, WEB, SSHD and other access modes are also supported. It can provide users with good experience with friendly design of network management system interface, simple and convenient operation.
