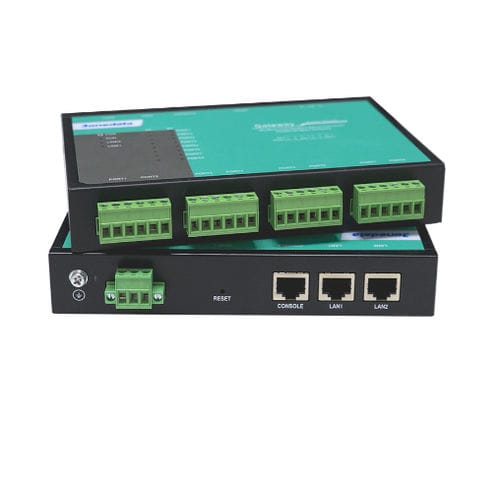

Protocol converter gateway GW1118-8DI(RS-485)

communicationindustrialIoT

GW1118-8DI(RS-485) 8-port RS-485 to Ethernet Modbus Gateway - Support 8 RS-485 serial ports to 2 10/100Base-T(X) self-adaptive Ethernet interfaces - Support conversion between Modbus RTU/ASCII and Modbus TCP protocol - RTU Master, RTU Slave, ASCII Master, ASCII Slave and other operating modes - Support virtual and real ID mapping to achieve flexible access between Master and Slave devices - Support network modes such as redundant mode, switching mode and dual IP mode to meet the needs of various network environments - Support 12~48VDC wide voltage input range - Support -40~75℃ wide operating temperature range Overview GW1118-8DI(RS-485)-TB-P(12-48VDC) is Modbus gateway designed for integrating Modbus RTU/ASCII and Modbus TCP networks; it can achieve the conversion between Modbus RTU/ASCII and Modbus TCP protocols. This product supports 8 RS-485 serial ports to 2 10/100Base-T(X) self-adaptive Ethernet port. It adopts desktop/wall mounting to meet the requirements of different application scenes. Modbus gateway supports multiple network protocols, such as Modbus, TCP, IP, UDP, TELNET, ARP, ICMP, HTTP, HTTPS, SNMP, SSH，SMTP, SNTP，DNS and DHCP protocols. It possesses complete management function, and supports access control, rapid configuration, online upgrading, etc. RTU Master, RTU Slave, ASCII Master, ASCII Slave and other operating modes are supported; it supports up to 256 Modbus TCP client (master) accesses and connects up to 128 Modbus TCP server (slave) devices. TELNET, WEB, SSHD and other access modes are also supported. It can provide users with good experience with friendly design of network management system interface, simple and convenient operation.
