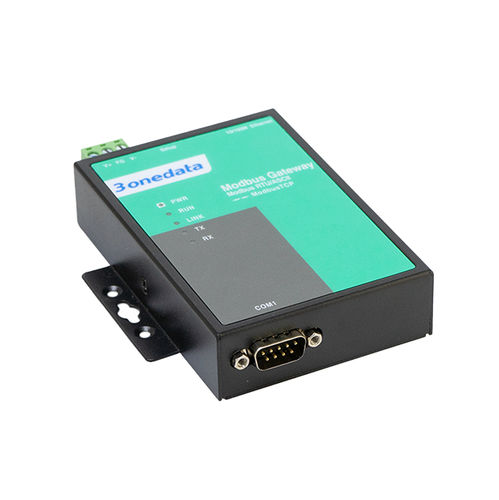

Protocol converter gateway GW1101-1DI(3IN1)

communicationindustrialEthernet

GW1101-1DI(3IN1) 1-port RS-232/485/422 to Ethernet Modbus Gateway - Support 1 3IN1 DB9 serial port and 1 10/100Base-T(X) self-adaptive Ethernet interface - Support conversion between Modbus RTU/ASCII and Modbus TCP protocol - Support RTU Master, RTU Slave, ASCII Master, ASCII Slave and other operating modes - Support virtual and real ID mapping to achieve flexible access between Master and Slave devices - Support 12~48VDC power supply input - Support -40~75℃ wide operating temperature range Overview GW1101-1DI(3IN1)-DB-P(12-48VDC) is Modbus Ethernet gateway designed for integrating Modbus RTU/ASCII and Modbus TCP networks; they can achieve the conversion between Modbus RTU/ASCII and Modbus TCP protocols. This product supports 1 3IN1 DB9 serial port to 1 100M Ethernet copper port. It adopts wall mounting to meet the requirements of different application scenes. Modbus gateway supports multiple network protocols, such as Modbus, TCP, IP, UDP, TELNET, ARP, ICMP, HTTP, HTTPS, SNMP, SSH，SMTP, SNTP，DNS and DHCP protocols. It possesses complete management function, and supports access control, rapid configuration, online upgrading, etc. RTU Master, RTU Slave, ASCII Master, ASCII Slave and other operating modes are supported; it supports up to 256 Modbus TCP client (master) accesses and connects up to 128 Modbus TCP server (slave) devices. TELNET, WEB, SSHD and other access modes are also supported. It can provide users with good experience with friendly design of network management system interface, simple and convenient operation.
