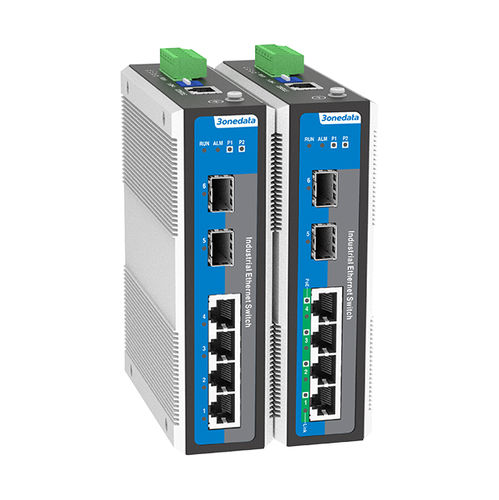

Managed switch IES6306 Series

6 portsgigabit Ethernetlayer 2

IES6306 Series 6-port Gigabit Layer 2 Managed Industrial Ethernet Switch(PoE Optional) -Support 2 2.5G Ethernet SFP fiber ports and 4 Gigabit copper ports (optional PoE) -Adopt Ring patented technology, support single ring, coupling ring, chain, Dual-homing, automatic recovery time of network failure < 20ms -Support multiple network protocols and industrial standard, such as STP/RSTP/MSTP, ERPS, PoE, DHCP, VLAN, QoS function, IGMP Snooping function, LLDP etc. -Support dual power redundancy, input voltage 48VDC PoE or 12~48VDC -The maximum output power of a PoE port is 30W, and that of the whole device is 120W -Support -40~75℃ wide operating temperature range Network management system supports various network protocols and industrial standards, such as Ring, STP/ RSTP/MSTP, ERPS, DHCP, VLAN, QoS function, IGMP Snooping, LLDP, Port Trunking, Port Mirroring, etc. It also possesses complete management functions, including Port Configuration, Access Control, Network Diagnosis, Online Upgrading and so on, and supports CLI, WEB, Telnet, SSH, SNMP and other access methods. It can provide users with good experience with friendly design of network management system interface, simple and convenient operation. The hardware adopts fanless, low power consumption and wide temperature and voltage design, which has passed rigorous industrial standard tests, and suits for the industrial scene environment with harsh requirements for EMC. It can be widely used in AP coverage, railway transportation, smart city, safe city, new energy, smart grid, aerospace, intelligent manufacturing, military project and other industrial fields.
