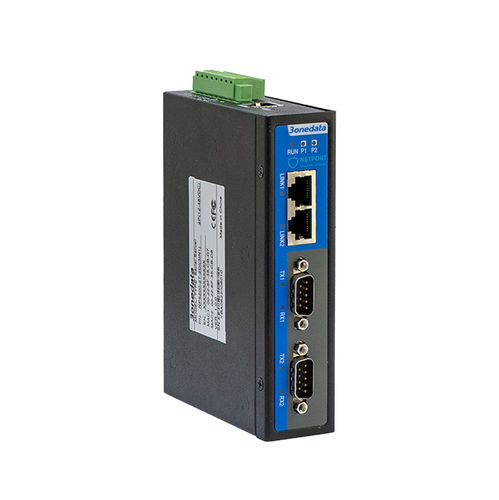

Industrial device server NP5200 Series

RS-232RS-485RS-422

Support 1/2/4 3IN1 serial ports to 2 10/100Base-T(X) self-adaptive Ethernet interfaces Support network modes such as redundant mode, switching mode and dual IP mode to meet the needs of various network environments Support RealCom, Reverse RealCom, TCP Server, TCP Client, UDP Server, UDP Client, Pair Master, Pair Slave, UDP Rang, UDP Multicast, Telnet, Reverse Telnet, RFC2217, Redundant COM, DRDAS RealCom, DRDAS TCP Server and other operating modes Support dual power supply 12~48VDC wide voltage input range Support -40~ 75℃ wide temperature operation Overview of 3onedata 1/2/4-port RS-232/485/422 3IN1 Secure Serial Device Server NP5200 Series NP5200 series are the safe serial networking server that can make serial device be equipped with networking capability instantly and centrally manage the scattered serial devices and hosts via network. This product supports 1/2/4 RS-232/485/422 serial ports to 2 100M Ethernet copper ports. It adopts rack mounting to meet the requirements of different application scenes. Serial device server supports multiple network protocols, such as TCP, UDP, RFC2217, TELNET, ARP, ICMP, HTTP, HTTPS, SNMP, SSH, SMTP, SNTP, DNS, BOOTP and DHCP protocol. It also possesses complete management functions, including Access Control, Rapid Configuration, Online Upgrading and so on. Each serial port supports 4 TCP or UDP session connections, and it also supports RealCom, Reverse RealCom, TCP Server, TCP Client, UDP Server, UDP Client, Pair Master, Pair Slave, UDP Rang, UDP Multicast, Telnet, Reverse Telnet, RFC2217, Redundant COM, DRDAS RealCom and DRDAS TCP Server work modes and TELNET, WEB and SSHD access modes.
